FPGA图像处理之三:VGA文字显示Verilog实现

上一篇我们介绍了使用fpga驱动vga显示一个简单的彩色条纹。这一篇我们看看文字如何显示输出。

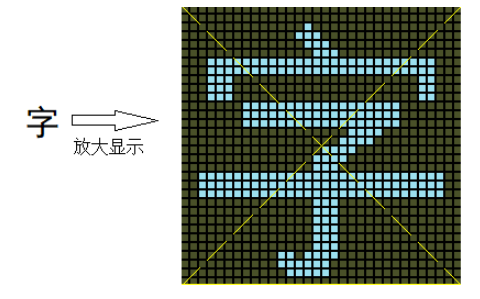

文字显示原理。文字的显示，其实也是把文字当做图片，一个像素点一个像素点的来输出。如下图：

如果对正方形内字符的每一个像素点进行标记，哪些点应该显示白色，哪些点应该显示黑色，那么就可以在vga输出的时候，输出对应像素点的颜色值，也就能输出这个文字。

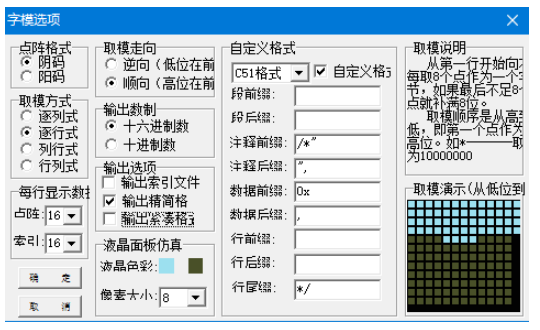

如何得到这个字的像素点颜色值呢？这儿我们可以使用一些工具，比如“PCtoLCD2002”这个软件。比如上面这个“字”，软件的字模格式设置如下：

可以得到以下字模：

0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x02,0x00,0x00,0x00,0x07,0x00,0x00
0x00,0x03,0x80,0x00,0x00,0x01,0xC0,0x00,0x1F,0xFF,0xFF,0xF8,0x1F,0xFF,0xFF,0xF8
0x1C,0x00,0x00,0x18,0x1C,0x00,0x00,0x18,0x1C,0x00,0x00,0x18,0x01,0xFF,0xFF,0x80
0x01,0xFF,0xFF,0x80,0x01,0xFF,0xFF,0x80,0x00,0x00,0x1E,0x00,0x00,0x00,0x3C,0x00
0x00,0x00,0xF0,0x00,0x00,0x01,0xE0,0x00,0x00,0x01,0xC0,0x00,0x3F,0xFF,0xFF,0xFC
0x3F,0xFF,0xFF,0xFC,0x3F,0xFF,0xFF,0xFC,0x00,0x01,0xC0,0x00,0x00,0x01,0xC0,0x00
0x00,0x01,0xC0,0x00,0x00,0x01,0xC0,0x00,0x00,0x01,0xC0,0x00,0x00,0x01,0xC0,0x00
0x00,0x1B,0xC0,0x00,0x00,0x1F,0x80,0x00,0x00,0x0F,0x80,0x00,0x00,0x00,0x00,0x00/*”字”,0*/

这是32X32的大小，点阵显得有点多。只要把这些值存到rom之中，当vga扫描到需要输出的位置时，从rom中取出对应的值给RGB输出即可。（如果要输出的字不多且固定，也可以把字模直接写在代码里）

参考代码入下：

module VGA_character(
input       wire                sysclk,         //系统时钟，也就是板子的时钟
input       wire                rst,
output      reg     [3:0]       R,              //输出的颜色值
output      reg     [3:0]       G,              //输出的颜色值
output      reg     [3:0]       B,              //输出的颜色值
output      wire                HS,             //水平同步信号
output      wire                VS              //垂直同步信号
);
//显示分辨率 640*480@60Hz
//时钟25.175M
localparam      HPOLA           =       0;  //水平同步信号极性
localparam      VPOLA           =       0;  //垂直同步信号极性
localparam      HTOTAL          =       800;//水平总像素数
localparam      HSYNCP          =       96; //水平同步信号像素数
localparam      HBACKP          =       40; //扫描后沿像素数
localparam      LBorder         =       8;  //左边框
localparam      HDISP           =       640;//显示区域
localparam      RBorder         =       8;  //右边框
localparam      HFRONTP         =       8;  //扫描前沿像素数
localparam      VTOTAL          =       525;//垂直总像素数
localparam      VSYNCP          =       2;  //垂直同步信号
localparam      VBACKP          =       25; //扫描后沿像素数
localparam      TBorder         =       8;  //顶边框
localparam      VDISP           =       480;//显示区域
localparam      BBorder         =       8;  //底边框
localparam      VFRONTP         =       2;  //扫描前沿像素数
wire                vgaclk;
wire                locked;
wire                vgarst;
assign  vgarst = ~locked;                   //locked为高表示时钟正常，此时不复位
//使用锁相环来输出指定时钟
pll pll_inst (
.areset ( rst ),
.inclk0 ( sysclk ),
.c0 ( vgaclk ),
.locked ( locked )
);
//*****************************************************
//“字”字模
reg         [31:0]  character[0:31];        //存储字模
reg         [9:0]   location_x = 432;       //显示位置
reg         [9:0]   location_y = 243;       //显示位置
initial begin
character[00] = 32'h00000000;
character[01] = 32'h00000000;
character[02] = 32'h00020000;
character[03] = 32'h00070000;
character[04] = 32'h00038000;
character[05] = 32'h0001C000;
character[06] = 32'h1FFFFFF8;
character[07] = 32'h1FFFFFF8;
character[08] = 32'h1C000018;
character[09] = 32'h1C000018;
character[10] = 32'h1C000018;
character[11] = 32'h01FFFF80;
character[12] = 32'h01FFFF80;
character[13] = 32'h01FFFF80;
character[14] = 32'h00001E00;
character[15] = 32'h00003C00;
character[16] = 32'h0000F000;
character[17] = 32'h0001E000;
character[18] = 32'h0001C000;
character[19] = 32'h3FFFFFFC;
character[20] = 32'h3FFFFFFC;
character[21] = 32'h3FFFFFFC;
character[22] = 32'h0001C000;
character[23] = 32'h0001C000;
character[24] = 32'h0001C000;
character[25] = 32'h0001C000;
character[26] = 32'h0001C000;
character[27] = 32'h0001C000;
character[28] = 32'h001BC000;
character[29] = 32'h001F8000;
character[30] = 32'h000F8000;
character[31] = 32'h00000000;
end
//*****************************************************
reg         [9:0]   hcnt;                           //行计数
reg         [9:0]   vcnt;                           //场计数
//行计数
always@(posedge vgaclk or posedge vgarst) begin
if(vgarst)
hcnt &lt;= 0;
else
if(hcnt == HTOTAL - 1)
hcnt &lt;= 0;
else
hcnt &lt;= hcnt + 1;
end
//场计数
always@(posedge vgaclk or posedge vgarst) begin
if(vgarst)
vcnt &lt;= 0;
else
if((hcnt == HTOTAL - 1) &amp;&amp; (vcnt == VTOTAL - 1))
vcnt &lt;= 0;
else if(hcnt == HTOTAL - 1)
vcnt &lt;= vcnt + 1;
else
vcnt &lt;= vcnt;
end
//行同步信号输出
assign HS = (hcnt &lt;= HSYNCP - 1)  ?  HPOLA : ~HPOLA;
//场同步信号输出
assign VS = (vcnt &lt;= VSYNCP - 1)  ?  VPOLA : ~VPOLA;
//显示区域的判断
wire    h_disp;
assign h_disp = (hcnt &gt; (HSYNCP + HBACKP + LBorder - 1) &amp;&amp;
hcnt &lt; (HSYNCP + HBACKP + LBorder + HDISP - 1)) ? 1'b1 : 1'b0;
wire    v_disp;
assign v_disp = (vcnt &gt; (VSYNCP + VBACKP + TBorder - 1) &amp;&amp;
vcnt &lt; (VSYNCP + VBACKP + TBorder + VDISP- 1))  ? 1'b1 : 1'b0;
wire disp;
assign disp = h_disp &amp;&amp; v_disp;
always@(posedge vgaclk or posedge vgarst) begin
if(vgarst)
begin
R &lt;= 4'b0000;
G &lt;= 4'b0000;
B &lt;= 4'b0000;
end
else
if(disp)
begin
if((hcnt&gt;=location_x &amp;&amp; hcnt&lt;location_x+32) &amp;&amp; (vcnt &gt;= location_y &amp;&amp; vcnt&lt;location_y+32))
if(character[vcnt-location_y][hcnt-location_x])
begin
R &lt;= 4'b1111;
G &lt;= 4'b1111;
B &lt;= 4'b1111;
end
else
begin
R &lt;= 4'b0000;
G &lt;= 4'b0000;
B &lt;= 4'b0000;
end
else
begin
R &lt;= 4'b0000;
G &lt;= 4'b0000;
B &lt;= 4'b0000;
end
end
else
begin
R &lt;= 4'b0000;
G &lt;= 4'b0000;
B &lt;= 4'b0000;
end
end
endmodule

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

module VGA_character(

input wire sysclk, //系统时钟，也就是板子的时钟

input wire rst,

output reg [3:0] R, //输出的颜色值

output reg [3:0] G, //输出的颜色值

output reg [3:0] B, //输出的颜色值

output wire HS, //水平同步信号

output wire VS //垂直同步信号

);

//显示分辨率 640*480@60Hz

//时钟25.175M

localparam HPOLA = 0; //水平同步信号极性

localparam VPOLA = 0; //垂直同步信号极性

localparam HTOTAL = 800;//水平总像素数

localparam HSYNCP = 96; //水平同步信号像素数

localparam HBACKP = 40; //扫描后沿像素数

localparam LBorder = 8; //左边框

localparam HDISP = 640;//显示区域

localparam RBorder = 8; //右边框

localparam HFRONTP = 8; //扫描前沿像素数

localparam VTOTAL = 525;//垂直总像素数

localparam VSYNCP = 2; //垂直同步信号

localparam VBACKP = 25; //扫描后沿像素数

localparam TBorder = 8; //顶边框

localparam VDISP = 480;//显示区域

localparam BBorder = 8; //底边框

localparam VFRONTP = 2; //扫描前沿像素数

wire vgaclk;

wire locked;

wire vgarst;

assign vgarst = ~locked; //locked为高表示时钟正常，此时不复位

//使用锁相环来输出指定时钟

pll pll_inst (

.areset ( rst ),

.inclk0 ( sysclk ),

.c0 ( vgaclk ),

.locked ( locked )

);

//*****************************************************

//“字”字模

reg [31:0] character[0:31]; //存储字模

reg [9:0] location_x = 432; //显示位置

reg [9:0] location_y = 243; //显示位置

initial begin

character[00] = 32'h00000000;

character[01] = 32'h00000000;

character[02] = 32'h00020000;

character[03] = 32'h00070000;

character[04] = 32'h00038000;

character[05] = 32'h0001C000;

character[06] = 32'h1FFFFFF8;

character[07] = 32'h1FFFFFF8;

character[08] = 32'h1C000018;

character[09] = 32'h1C000018;

character[10] = 32'h1C000018;

character[11] = 32'h01FFFF80;

character[12] = 32'h01FFFF80;

character[13] = 32'h01FFFF80;

character[14] = 32'h00001E00;

character[15] = 32'h00003C00;

character[16] = 32'h0000F000;

character[17] = 32'h0001E000;

character[18] = 32'h0001C000;

character[19] = 32'h3FFFFFFC;

character[20] = 32'h3FFFFFFC;

character[21] = 32'h3FFFFFFC;

character[22] = 32'h0001C000;

character[23] = 32'h0001C000;

character[24] = 32'h0001C000;

character[25] = 32'h0001C000;

character[26] = 32'h0001C000;

character[27] = 32'h0001C000;

character[28] = 32'h001BC000;

character[29] = 32'h001F8000;

character[30] = 32'h000F8000;

character[31] = 32'h00000000;

end

//*****************************************************

reg [9:0] hcnt; //行计数

reg [9:0] vcnt; //场计数

//行计数

always@(posedge vgaclk or posedge vgarst) begin

if(vgarst)

hcnt <= 0;

else

if(hcnt == HTOTAL - 1)

hcnt <= 0;

else

hcnt <= hcnt + 1;

end

//场计数

always@(posedge vgaclk or posedge vgarst) begin

if(vgarst)

vcnt <= 0;

else

if((hcnt == HTOTAL - 1) && (vcnt == VTOTAL - 1))

vcnt <= 0;

else if(hcnt == HTOTAL - 1)

vcnt <= vcnt + 1;

else

vcnt <= vcnt;

end

//行同步信号输出

assign HS = (hcnt <= HSYNCP - 1) ? HPOLA : ~HPOLA;

//场同步信号输出

assign VS = (vcnt <= VSYNCP - 1) ? VPOLA : ~VPOLA;

//显示区域的判断

wire h_disp;

assign h_disp = (hcnt > (HSYNCP + HBACKP + LBorder - 1) &&

hcnt < (HSYNCP + HBACKP + LBorder + HDISP - 1)) ? 1'b1 : 1'b0;

wire v_disp;

assign v_disp = (vcnt > (VSYNCP + VBACKP + TBorder - 1) &&

vcnt < (VSYNCP + VBACKP + TBorder + VDISP- 1)) ? 1'b1 : 1'b0;

wire disp;

assign disp = h_disp && v_disp;

always@(posedge vgaclk or posedge vgarst) begin

if(vgarst)

begin

R <= 4'b0000;

G <= 4'b0000;

B <= 4'b0000;

end

else

if(disp)

begin

if((hcnt>=location_x && hcnt<location_x+32) && (vcnt >= location_y && vcnt<location_y+32))

if(character[vcnt-location_y][hcnt-location_x])

begin

R <= 4'b1111;

G <= 4'b1111;

B <= 4'b1111;

end

else

begin

R <= 4'b0000;

G <= 4'b0000;

B <= 4'b0000;

end

else

begin

R <= 4'b0000;

G <= 4'b0000;

B <= 4'b0000;

end

else

begin

R <= 4'b0000;

G <= 4'b0000;

B <= 4'b0000;

end

endmodule

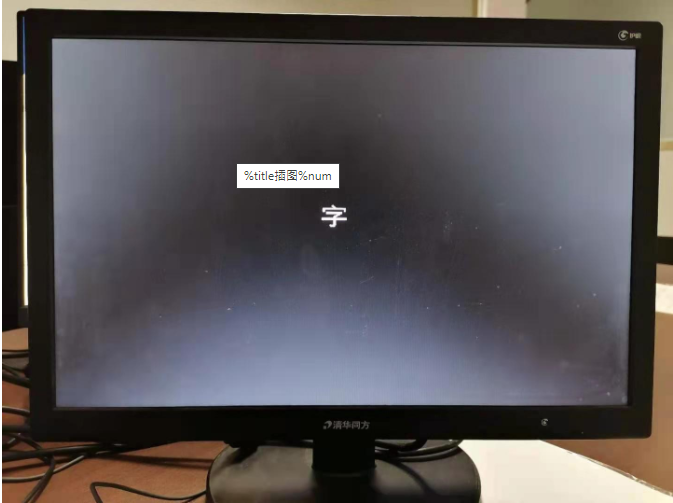

效果如下：
