数码管动态扫描显示Verilog实现--秒表

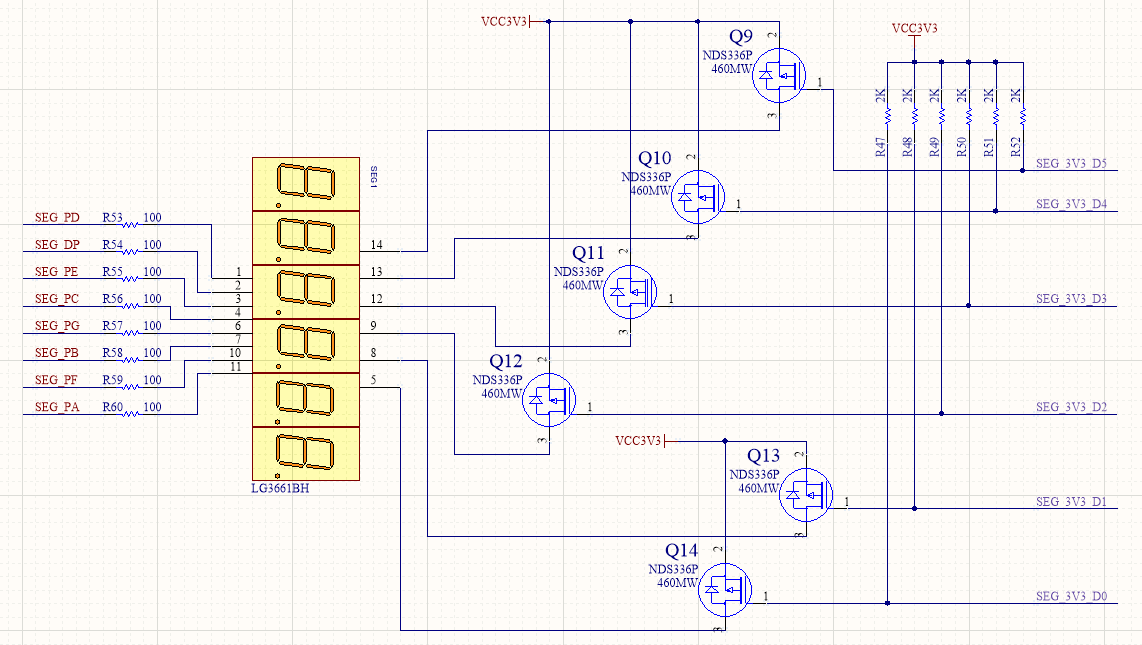

上章内容介绍了数码管的译码显示，并将数码管固定在右边第一个数码管上。本节内容将接上章内容，如何将多个数码管动态显示不同的内容。在FII-PRA006/010以及FII-PRX100-D的系统中都是采用段共享的6数码管结构。其中FII-PRA006/010的原理图连线如图1，

图1

图2，按键对应的数码管管脚

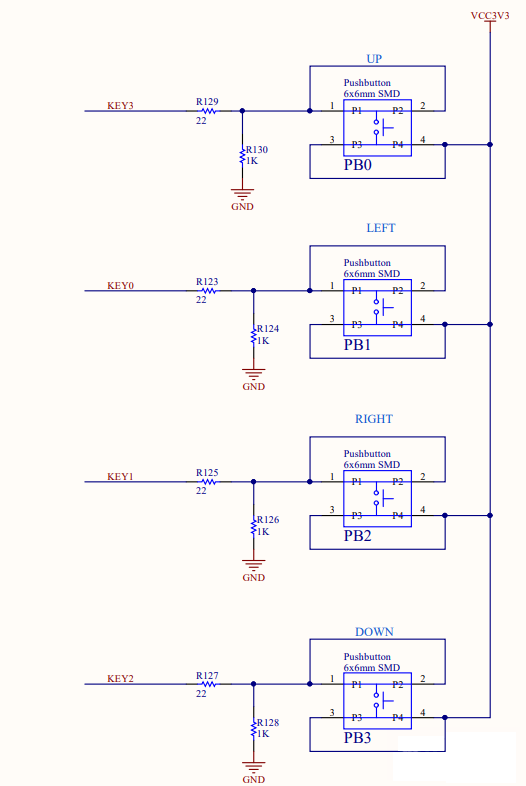

图3 按键原理图

1.动态扫描原理

动态扫描的基本原理是采用分时复用的方法，在某一时刻只会有一个数码管点亮，其它数码管处在非点亮状态，利用人眼睛的视觉滞留效应，达到看起来所有数码管被同时点亮的效果。在某个数码管点亮的某一时刻，相对应的显示内容为段译码驱动的各个段，使得不同的内容显示在不同的数码管上。图1中，由于ND336P是P沟道小功率MOS管，因此只有栅极为低电平时才会导通，因此为了达到分时复用的目的，每一段时间内只有SEG_3V3_D0, SEG_3V3_D1, SEG_3V3_D2, SEG_3V3_D3, SEG_3V3_D4, SEG_3V3_D5只有对应的一位为低电平，其它的位都为高电平，依次轮流扫描。

2. 变量描述

针对动态扫描的数码管，这里定义3个变量SEVEN_SEG[6:0]，DP，SEAT[5:0]，对应关系如下：

SEVEN_SEG[6:0]对应A，B，C，D，E，F，G七段，DP对应数码管上的小数点，见表一。由于PRA006/10采用共阳极数码管，而各段经过限流电阻直接连接到FPGA（I/O）管脚上，因此FPGA对应的管脚在输出低电平时点亮对应的数码管的某一段。
SEAT[5:0] 对应数码管的位，即在某一时刻到底哪一个数码管应该点亮，SEAT[5:0] 与SEG_3V3_D0, SEG_3V3_D1, SEG_3V3_D2, SEG_3V3_D3, SEG_3V3_D4, SEG_3V3_D5一一对应，见表1。
引入时钟信号inclk和按键KEY3（在FII-PRA006上对应PB0），如表1。从图2. 3可以看出，按键在按下后，对应的FPGA管脚为高电平，按键释放后，FPGA对应的管脚为高电平，这一点与PRX100D 的开发板不同，因此在Verilog程序设计中应有所改变。

表1

程序信号名	网络标号	FPGA管脚	端口说明
clk	C10_50MCLK	91	输入时钟
rst	KEY3	11	复位按键
SEAT[5]	SEG_3V3_D5	124	位选信号第5位
SEAT[4]	SEG_3V3_D4	127	位选信号第4位
SEAT[3]	SEG_3V3_D3	129	位选信号第3位
SEAT[2]	SEG_3V3_D2	141	位选信号第2位
SEAT[1]	SEG_3V3_D1	142	位选信号第1位
SEAT[0]	SEG_3V3_D0	136	位选信号第0位
SEVEN_SEG[6]	SEG_PG	135	段选信号第7位
SEVEN_SEG[5]	SEG_PF	138	段选信号第6位
SEVEN_SEG[4]	SEG_PE	126	段选信号第5位
SEVEN_SEG[3]	SEG_PD	125	段选信号第4位
SEVEN_SEG[2]	SEG_PC	133	段选信号第3位
SEVEN_SEG[1]	SEG_PB	137	段选信号第2位
SEVEN_SEG[0]	SEG_PA	132	段选信号第1位
DP	SEG_DP	128	段选信号第0位

3. 程序设计

设计秒表程序，要求如下：右边两个数码管显示1/100秒的显示，范围0-99。第3，4数码管显示秒计数，计数范围0-59，最左边的数码管显示分计数，范围0-59。当按键按下(rst为高)时，清零所有的计数器，按键释放后，秒表开始计数。代码如下：

/*
mapping :
SEVEN_SEG[0]  SEVEN_SEG[1]  SEVEN_SEG[2]  SEVEN_SEG[3]  SEVEN_SEG[4]  SEVEN_SEG[5]  SEVEN_SEG[6]
*** A*****    *****B*****   *****C*****    *****D****   ******E*****  *****F*****   *****G******
*/
module scan_8seg
(
input            inclk,
input            rst,
output reg [6:0] SEVEN_SEG,
output reg       DP,
output reg [5:0] SEAT
);
reg [3:0]  count_msa, count_msb;
reg [3:0]  count_sa, count_sb;
reg [3:0]  count_ma, count_mb;
reg [15:0] div_count_ms;
reg        f_1ms;
reg [3:0]  div_count_10ms;
reg        f_10ms;
reg [3:0]  count_sel;
//毫秒分频
always@(posedge inclk or posedge rst )
if(rst)
begin
div_count_ms &lt;= 0;
f_1ms &lt;= 0;
end
else
begin
f_1ms &lt;= 0;
if(div_count_ms == 49999)
begin
div_count_ms &lt;= 0;
f_1ms &lt;= 1'b1;
end
else
begin
div_count_ms &lt;= div_count_ms + 1;
end
end
//10毫秒分频
always@(posedge inclk or posedge rst )
if(rst)
begin
div_count_10ms &lt;= 0;
f_10ms &lt;= 0;
end
else
begin
f_10ms &lt;= 0;
if(f_1ms)
begin
if(div_count_10ms == 9)
begin
div_count_10ms &lt;= 0;
f_10ms &lt;= 1'b1;
end
else
begin
div_count_10ms &lt;= div_count_10ms + 1;
end
end
end
//计数，毫秒（精度为10毫秒），秒，分
always@(posedge inclk or posedge rst )
if(rst)
begin
count_msa &lt;= 0;
count_msb &lt;= 0;
count_sa &lt;= 0;
count_sb &lt;= 0;
count_ma &lt;= 0;
count_mb &lt;= 0;
end
else
begin
if(f_10ms)
begin
if(count_msa == 9)
begin
count_msa &lt;= 0;
if(count_msb == 9)
begin
count_msb &lt;= 0;
if(count_sa == 9)
begin
count_sa &lt;= 0;
if(count_sb == 5)
begin
count_sb &lt;= 0;
if(count_ma == 9)
begin
count_ma &lt;= 0;
if(count_mb == 5)
count_mb &lt;= 0;
else
count_mb &lt;= count_mb + 1;
end
else
count_ma &lt;= count_ma + 1;
end
else
count_sb &lt;= count_sb + 1;
end
else
count_sa &lt;= count_sa + 1;
end
else
count_msb &lt;= count_msb + 1;
end
else
count_msa &lt;= count_msa + 1;
end
end
//====================  数码管扫描
always@(posedge inclk or posedge rst )
if(rst)
begin
SEAT &lt;= 6'b11_1111;
count_sel &lt;= 0;
DP &lt;= 1'b1;
end
else
begin
if(f_1ms)
begin
case (SEAT)
6'b11_1110:
begin
SEAT &lt;= 6'b11_1101;
count_sel &lt;= count_msb;
DP &lt;= 1'b1;
end
6'b11_1101:
begin
SEAT &lt;= 6'b11_1011;
count_sel &lt;= count_sa;
DP &lt;= 1'b0;
end
6'b11_1011:
begin
SEAT &lt;= 6'b11_0111;
count_sel &lt;= count_sb;
DP &lt;= 1'b1;
end
6'b11_0111:
begin
SEAT &lt;= 6'b10_1111;
count_sel &lt;= count_ma;
DP &lt;= 1'b0;
end
6'b10_1111:
begin
SEAT &lt;= 6'b01_1111;
count_sel &lt;= count_mb;
DP &lt;= 1'b1;
end
6'b01_1111:
begin
SEAT &lt;= 6'b11_1110;
count_sel &lt;= count_msa;
DP &lt;= 1'b1;
end
default: SEAT &lt;= 6'b01_1111;
endcase
end
end
//7段显示译码
always@(*)
case(count_sel)
0:       SEVEN_SEG = 7'b100_0000;
1:       SEVEN_SEG = 7'b111_1001;
2:       SEVEN_SEG = 7'b010_0100;
3:       SEVEN_SEG = 7'b011_0000;
4:       SEVEN_SEG = 7'b001_1001;
5:       SEVEN_SEG = 7'b001_0010;
6:       SEVEN_SEG = 7'b000_0010;
7:       SEVEN_SEG = 7'b111_1000;
8:       SEVEN_SEG = 7'b000_0000;
9:       SEVEN_SEG = 7'b001_0000;
4'ha:    SEVEN_SEG = 7'b000_1000;
4'hb:    SEVEN_SEG = 7'b000_0011;
4'hC:    SEVEN_SEG = 7'b100_0110;
4'hd:    SEVEN_SEG = 7'b010_0001;
4'hE:    SEVEN_SEG = 7'b000_0110;
4'hF:    SEVEN_SEG = 7'b000_1110;
default: SEVEN_SEG = 7'b111_1111;
endcase
endmodule

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

mapping :

SEVEN_SEG[0] SEVEN_SEG[1] SEVEN_SEG[2] SEVEN_SEG[3] SEVEN_SEG[4] SEVEN_SEG[5] SEVEN_SEG[6]

*** A***** *****B***** *****C***** *****D**** ******E***** *****F***** *****G******

module scan_8seg

(

input inclk,

input rst,

output reg [6:0] SEVEN_SEG,

output reg DP,

output reg [5:0] SEAT

);

reg [3:0] count_msa, count_msb;

reg [3:0] count_sa, count_sb;

reg [3:0] count_ma, count_mb;

reg [15:0] div_count_ms;

reg f_1ms;

reg [3:0] div_count_10ms;

reg f_10ms;

reg [3:0] count_sel;

//毫秒分频

always@(posedge inclk or posedge rst )

if(rst)

begin

div_count_ms <= 0;

f_1ms <= 0;

end

else

begin

f_1ms <= 0;

if(div_count_ms == 49999)

begin

div_count_ms <= 0;

f_1ms <= 1'b1;

end

else

begin

div_count_ms <= div_count_ms + 1;

end

//10毫秒分频

always@(posedge inclk or posedge rst )

if(rst)

begin

div_count_10ms <= 0;

f_10ms <= 0;

end

else

begin

f_10ms <= 0;

if(f_1ms)

begin

if(div_count_10ms == 9)

begin

div_count_10ms <= 0;

f_10ms <= 1'b1;

end

else

begin

div_count_10ms <= div_count_10ms + 1;

end

//计数，毫秒（精度为10毫秒），秒，分

always@(posedge inclk or posedge rst )

if(rst)

begin

count_msa <= 0;

count_msb <= 0;

count_sa <= 0;

count_sb <= 0;

count_ma <= 0;

count_mb <= 0;

end

else

begin

if(f_10ms)

begin

if(count_msa == 9)

begin

count_msa <= 0;

if(count_msb == 9)

begin

count_msb <= 0;

if(count_sa == 9)

begin

count_sa <= 0;

if(count_sb == 5)

begin

count_sb <= 0;

if(count_ma == 9)

begin

count_ma <= 0;

if(count_mb == 5)

count_mb <= 0;

else

count_mb <= count_mb + 1;

end

else

count_ma <= count_ma + 1;

end

else

count_sb <= count_sb + 1;

end

else

count_sa <= count_sa + 1;

end

else

count_msb <= count_msb + 1;

end

else

count_msa <= count_msa + 1;

end

//==================== 数码管扫描

always@(posedge inclk or posedge rst )

if(rst)

begin

SEAT <= 6'b11_1111;

count_sel <= 0;

DP <= 1'b1;

end

else

begin

if(f_1ms)

begin

case (SEAT)

6'b11_1110:

begin

SEAT <= 6'b11_1101;

count_sel <= count_msb;

DP <= 1'b1;

end

6'b11_1101:

begin

SEAT <= 6'b11_1011;

count_sel <= count_sa;

DP <= 1'b0;

end

6'b11_1011:

begin

SEAT <= 6'b11_0111;

count_sel <= count_sb;

DP <= 1'b1;

end

6'b11_0111:

begin

SEAT <= 6'b10_1111;

count_sel <= count_ma;

DP <= 1'b0;

end

6'b10_1111:

begin

SEAT <= 6'b01_1111;

count_sel <= count_mb;

DP <= 1'b1;

end

6'b01_1111:

begin

SEAT <= 6'b11_1110;

count_sel <= count_msa;

DP <= 1'b1;

end

default: SEAT <= 6'b01_1111;

endcase

end

//7段显示译码

always@(*)

case(count_sel)

0: SEVEN_SEG = 7'b100_0000;

1: SEVEN_SEG = 7'b111_1001;

2: SEVEN_SEG = 7'b010_0100;

3: SEVEN_SEG = 7'b011_0000;

4: SEVEN_SEG = 7'b001_1001;

5: SEVEN_SEG = 7'b001_0010;

6: SEVEN_SEG = 7'b000_0010;

7: SEVEN_SEG = 7'b111_1000;

8: SEVEN_SEG = 7'b000_0000;

9: SEVEN_SEG = 7'b001_0000;

4'ha: SEVEN_SEG = 7'b000_1000;

4'hb: SEVEN_SEG = 7'b000_0011;

4'hC: SEVEN_SEG = 7'b100_0110;

4'hd: SEVEN_SEG = 7'b010_0001;

4'hE: SEVEN_SEG = 7'b000_0110;

4'hF: SEVEN_SEG = 7'b000_1110;

default: SEVEN_SEG = 7'b111_1111;

endcase

endmodule

编译，管脚锁定，重新编译下载，测试。
测试中几个方法：
1. 由于最低位的数码管显示的1/100秒，变化速度太快，无法看清计数是否正确，可以将f_10ms在分频调慢50倍，用于调式，调试结束后，还原到1/100秒的分频。
2. 分计数器，依赖秒计数的进位，因此验证分计数器是否正确计数，等待时间过长，可以将f_10ms再调快100倍用于测试，测设完成后，还原到最初的分屏程序。

思考题：

DP的显示是如何在正确的位置上的？
SEVEN_SEG是否可以利用时钟锁存后输出，有什么差别？如果时钟锁存输出，程序如何修改？

作业题：

参照上文，根据PRX100-D的硬件原理（数码管，按键），在Vivado下完成数码管扫描显示设计，并在PRX100-D实验开发板上完成相关实验，最后编写实验设计报告。
