I2C 主设备PHY层读控制Verilog程序设计

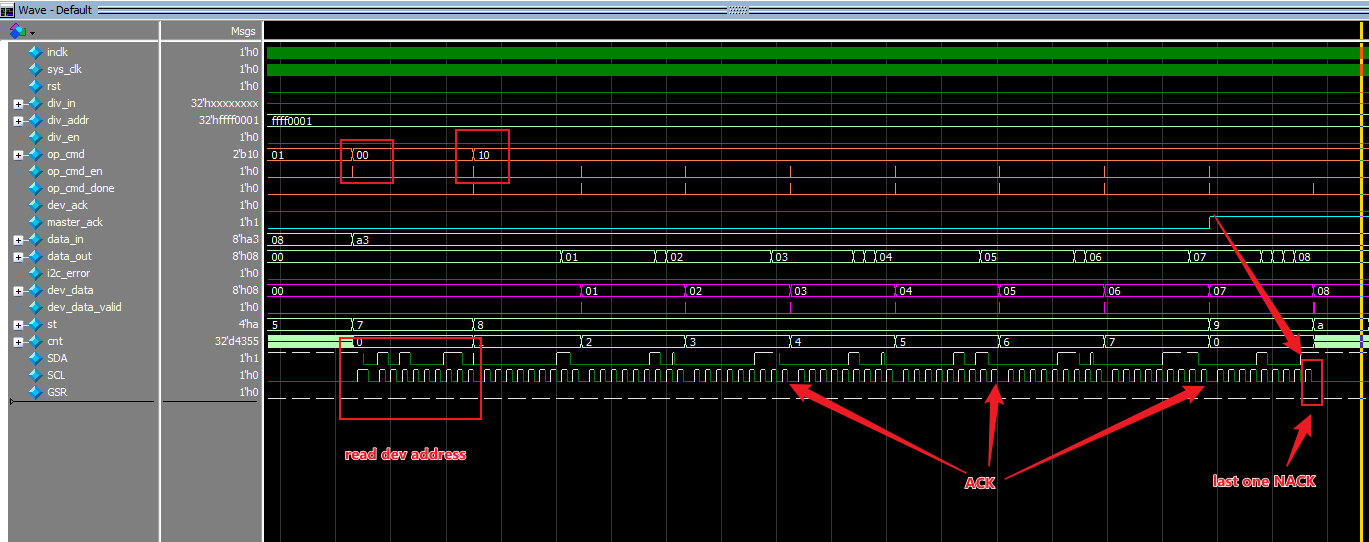

在I2C发送对设备的地址和读操作后，就要向设备发送读数据操作，这时,控制器就需要连续发送SCL信号给设备，并且在SCL的上升沿读取设备返回的数据，在连续接收到8个数据后，控制器发送ack/nack信号给设备。这个部分就是控制器对设备的读操作。在I2C PHY层 Verilog程序结构化设计文章中的op_cmd[1:0] = 2’b10 来实现。如图1：

图1

1.I2C读数据部分控制器程序设计

接口要求：
- 复位信号，系统时钟，系统时钟分频（由于I2C不同速度匹配）
  - input rst,
  - input sys_clk,
  - input clk_en, clk_en_half,

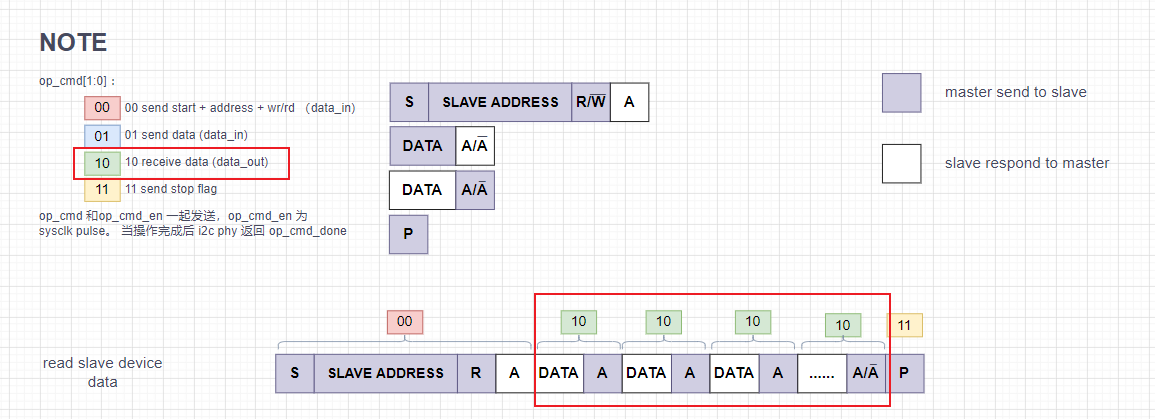

- 从设备地址、启动信号、读/写标志（即该段程序之后的I2C 总线行为
  - output [7:0] data_out, // device send data to controller
  - input [1:0] op_cmd, // 2’b10 means controller receive data from device
  - input op_cmd_en, // op_cmd enable , sys_clk single pulse
- I2C 总线的内部信号：由于inout信号一般只在端口使用，因此在FPGA的内部逻辑（内部模块）将会把inout（双向口）变换成input, output类型进行传递
  - input sda_i,
  - output sda_o,
  - output sda_t,
  - input scl_i,
  - output scl_o,
  - output scl_t,
- 握手信号：op_cmd_done 操作完成、从设备应答。当op_cmd_done产生，从设备应答后(dev_ack)同时送给上层模块。op_cmd_done 保持一个sys_clk 时钟宽度。
  - output op_cmd_done, // operation finished
  - input master_ack //controller send ACK/NACK to device

主体程序设计

该部分程序实现的主体内容如下：初始化，在IDLE状态下检测启动请求（op_cmd = 2’b01），控制器发送数据进行串行化，等待从设备应答。串行化期间对SCL，SDA的要求是，在SCL为高电平期间设备接收控制器发送的数据，在SCL低电平后，等待半个时钟周期再变化数据，这样可以保证在pcb layout，或者FPGA 布局布线不会影响到 SCL 低电平内发送数据。当主控制器接收到8个bit数据后，控制器向设备发送ACK/NACK 。

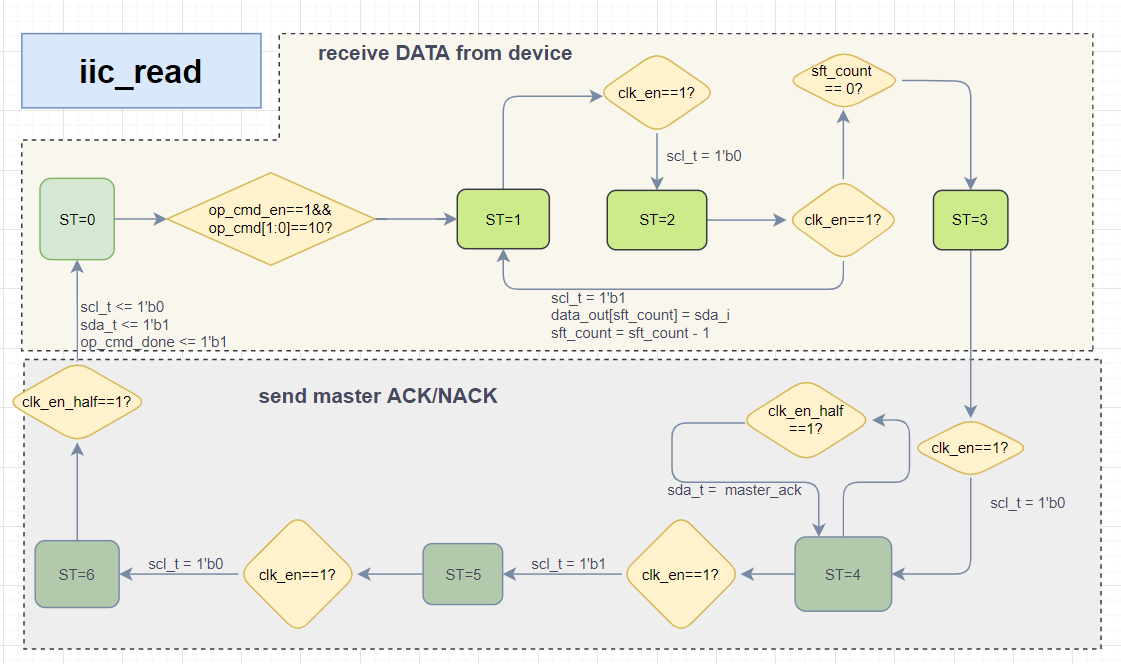

程序的流程图如下：

图2

程序代码如下：

`timescale 1ns / 1ps
module i2c_read(
input            sys_clk,
input      [1:0] op_cmd,
input            op_cmd_en,
output reg       op_cmd_done,
input            master_ack,
output reg [7:0] data_out,
input            clk_en,
input            clk_en_half,
output reg       sda_t,
output           sda_o,
input            sda_i,
output reg       scl_t,
output           scl_o,
input            scl_i,
input            rst
);
/*
op_cmd[1:0] ： 00 send start + address + wr/rd （data_in)
01 send data
10 receive data (data_out)
11 send stop flag
*/
assign scl_o = 1'b0;
assign sda_o = 1'b0;
reg [7:0] i2c_st;
reg [2:0] sft_count;
reg [7:0] i2c_wr_data;             //将需要写的数据存入本地寄存器中
always@(posedge sys_clk or posedge rst)
if(rst)
begin
op_cmd_done &lt;= 0;
data_out &lt;= 0;
scl_t &lt;= 1'b0;
sda_t &lt;= 1'b1;
sft_count &lt;= 7;
i2c_wr_data &lt;= 0;
i2c_st &lt;= 0;
end
else
case(i2c_st)
0:
begin
sft_count &lt;= 7;
op_cmd_done &lt;= 1'b0;
scl_t &lt;= scl_i;
sda_t &lt;= sda_i;
if({op_cmd_en,op_cmd[1:0]} == 3'b110)
i2c_st &lt;= 1;     // read data
end
1:  //read data
begin
sda_t &lt;= 1'b1;
if(clk_en)
begin
scl_t &lt;= 1'b0;
i2c_st &lt;= 2;
end
end
2:
begin
if(clk_en)
begin
scl_t &lt;= 1'b1;
data_out[sft_count] &lt;= sda_i;
sft_count &lt;= sft_count - 1;
i2c_st &lt;= 1;
if(sft_count == 0)
i2c_st &lt;= 3;
end
end
3:
begin
if( clk_en )
begin
scl_t &lt;= 1'b0;
i2c_st &lt;= 4;
end
end
4:  //send ack/nack to device
begin
if( clk_en_half )
sda_t &lt;=  master_ack;
if( clk_en )
begin
scl_t &lt;= 1'b1;
i2c_st &lt;= 5;
end
end
5:
begin
if( clk_en )
begin
scl_t &lt;= 1'b0;
i2c_st &lt;= 6;
end
end
6:
begin
if(clk_en_half)
begin
scl_t &lt;= 1'b0;
sda_t &lt;= 1'b1;                   //兼容性设计， 防止pcb layout 时， sda 延迟，造成事实上的start 信号
op_cmd_done &lt;= 1'b1;
i2c_st &lt;=0;
end
end
default:i2c_st &lt;= 0;
endcase
endmodule

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

`timescale 1ns / 1ps

module i2c_read(

input sys_clk,

input [1:0] op_cmd,

input op_cmd_en,

output reg op_cmd_done,

input master_ack,

output reg [7:0] data_out,

input clk_en,

input clk_en_half,

output reg sda_t,

output sda_o,

input sda_i,

output reg scl_t,

output scl_o,

input scl_i,

input rst

);

op_cmd[1:0] ： 00 send start + address + wr/rd （data_in)

01 send data

10 receive data (data_out)

11 send stop flag

assign scl_o = 1'b0;

assign sda_o = 1'b0;

reg [7:0] i2c_st;

reg [2:0] sft_count;

reg [7:0] i2c_wr_data; //将需要写的数据存入本地寄存器中

always@(posedge sys_clk or posedge rst)

if(rst)

begin

op_cmd_done <= 0;

data_out <= 0;

scl_t <= 1'b0;

sda_t <= 1'b1;

sft_count <= 7;

i2c_wr_data <= 0;

i2c_st <= 0;

end

else

case(i2c_st)

begin

sft_count <= 7;

op_cmd_done <= 1'b0;

scl_t <= scl_i;

sda_t <= sda_i;

if({op_cmd_en,op_cmd[1:0]} == 3'b110)

i2c_st <= 1; // read data

end

1: //read data

begin

sda_t <= 1'b1;

if(clk_en)

begin

scl_t <= 1'b0;

i2c_st <= 2;

end

begin

if(clk_en)

begin

scl_t <= 1'b1;

data_out[sft_count] <= sda_i;

sft_count <= sft_count - 1;

i2c_st <= 1;

if(sft_count == 0)

i2c_st <= 3;

end

begin

if( clk_en )

begin

scl_t <= 1'b0;

i2c_st <= 4;

end

4: //send ack/nack to device

begin

if( clk_en_half )

sda_t <= master_ack;

if( clk_en )

begin

scl_t <= 1'b1;

i2c_st <= 5;

end

begin

if( clk_en )

begin

scl_t <= 1'b0;

i2c_st <= 6;

end

begin

if(clk_en_half)

begin

scl_t <= 1'b0;

sda_t <= 1'b1; //兼容性设计，防止pcb layout 时， sda 延迟，造成事实上的start 信号

op_cmd_done <= 1'b1;

i2c_st <=0;

end

default:i2c_st <= 0;

endcase

endmodule

iic_phy 模块代码

`timescale 1ns / 1ps
module iic_phy(
input            sys_clk,
input      [1:0] op_cmd,
input            op_cmd_en,
output reg       op_cmd_done,
output reg       dev_ack,
input            master_ack,
input      [7:0] data_in,
output     [7:0] data_out,
input            clk_en,
input            clk_en_half,
output reg       sda_t,
output           sda_o,
input            sda_i,
output reg       scl_t,
output           scl_o,
input            scl_i,
input            rst
);
/*
op_cmd[1:0] ： 00 send start + address + wr/rd （data_in)
01 send data
10 receive data (data_out)
11 send stop flag
*/
wire dev_ack_addr;
wire dev_ack_wr;
always @(*)
begin
case(op_cmd)
2'b00: dev_ack = dev_ack_addr;
2'b01: dev_ack = dev_ack_wr;
default: ;
endcase
end
wire op_cmd_done_addr;
wire op_cmd_done_wr;
wire op_cmd_done_read;
wire op_cmd_done_stop;
always @(*)
begin
case(op_cmd)
2'b00: op_cmd_done = op_cmd_done_addr;
2'b01: op_cmd_done = op_cmd_done_wr;
2'b10: op_cmd_done = op_cmd_done_read;
2'b11: op_cmd_done = op_cmd_done_stop;
endcase
end
wire sda_t_addr;
wire sda_t_wr;
wire sda_t_read;
wire sda_t_stop;
wire scl_t_addr;
wire scl_t_wr;
wire scl_t_read;
wire scl_t_stop;
always @(*)
begin
case(op_cmd)
2'b00: begin sda_t = sda_t_addr; scl_t = scl_t_addr; end
2'b01: begin sda_t = sda_t_wr;   scl_t = scl_t_wr;   end
2'b10: begin sda_t = sda_t_read; scl_t = scl_t_read; end
2'b11: begin sda_t = sda_t_stop; scl_t = scl_t_stop; end
endcase
end
i2c_addr  i2c_addr_inst
(
.sys_clk     (sys_clk),
.op_cmd      (op_cmd),
.op_cmd_en   (op_cmd_en),
.op_cmd_done (op_cmd_done_addr),
.dev_ack     (dev_ack_addr),
.data_in     (data_in),
.clk_en      (clk_en),
.clk_en_half (clk_en_half),
.sda_t       (sda_t_addr),
.sda_i       (sda_i),
.scl_t       (scl_t_addr),
.scl_i       (scl_i),
.rst         (rst)
);
i2c_write  i2c_write_inst
(
.sys_clk     (sys_clk),
.op_cmd      (op_cmd),
.op_cmd_en   (op_cmd_en),
.op_cmd_done (op_cmd_done_wr),
.dev_ack     (dev_ack_wr),
.data_in     (data_in),
.clk_en      (clk_en),
.clk_en_half (clk_en_half),
.sda_t       (sda_t_wr),
.sda_i       (sda_i),
.scl_t       (scl_t_wr),
.scl_i       (scl_i),
.rst         (rst)
);
i2c_read  i2c_read_inst
(
.sys_clk     (sys_clk),
.op_cmd      (op_cmd),
.op_cmd_en   (op_cmd_en),
.op_cmd_done (op_cmd_done_read),
.master_ack  (master_ack),
.data_out    (data_out),
.clk_en      (clk_en),
.clk_en_half (clk_en_half),
.sda_t       (sda_t_read),
.sda_i       (sda_i),
.scl_t       (scl_t_read),
.scl_i       (scl_i),
.rst         (rst)
);
assign sda_o = 1'b0;
assign scl_o = 1'b0;
endmodule

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

`timescale 1ns / 1ps

module iic_phy(

input sys_clk,

input [1:0] op_cmd,

input op_cmd_en,

output reg op_cmd_done,

output reg dev_ack,

input master_ack,

input [7:0] data_in,

output [7:0] data_out,

input clk_en,

input clk_en_half,

output reg sda_t,

output sda_o,

input sda_i,

output reg scl_t,

output scl_o,

input scl_i,

input rst

);

op_cmd[1:0] ： 00 send start + address + wr/rd （data_in)

01 send data

10 receive data (data_out)

11 send stop flag

wire dev_ack_addr;

wire dev_ack_wr;

always @(*)

begin

case(op_cmd)

2'b00: dev_ack = dev_ack_addr;

2'b01: dev_ack = dev_ack_wr;

default: ;

endcase

end

wire op_cmd_done_addr;

wire op_cmd_done_wr;

wire op_cmd_done_read;

wire op_cmd_done_stop;

always @(*)

begin

case(op_cmd)

2'b00: op_cmd_done = op_cmd_done_addr;

2'b01: op_cmd_done = op_cmd_done_wr;

2'b10: op_cmd_done = op_cmd_done_read;

2'b11: op_cmd_done = op_cmd_done_stop;

endcase

end

wire sda_t_addr;

wire sda_t_wr;

wire sda_t_read;

wire sda_t_stop;

wire scl_t_addr;

wire scl_t_wr;

wire scl_t_read;

wire scl_t_stop;

always @(*)

begin

case(op_cmd)

2'b00: begin sda_t = sda_t_addr; scl_t = scl_t_addr; end

2'b01: begin sda_t = sda_t_wr; scl_t = scl_t_wr; end

2'b10: begin sda_t = sda_t_read; scl_t = scl_t_read; end

2'b11: begin sda_t = sda_t_stop; scl_t = scl_t_stop; end

endcase

end

i2c_addr i2c_addr_inst

(

.sys_clk (sys_clk),

.op_cmd (op_cmd),

.op_cmd_en (op_cmd_en),

.op_cmd_done (op_cmd_done_addr),

.dev_ack (dev_ack_addr),

.data_in (data_in),

.clk_en (clk_en),

.clk_en_half (clk_en_half),

.sda_t (sda_t_addr),

.sda_i (sda_i),

.scl_t (scl_t_addr),

.scl_i (scl_i),

.rst (rst)

);

i2c_write i2c_write_inst

(

.sys_clk (sys_clk),

.op_cmd (op_cmd),

.op_cmd_en (op_cmd_en),

.op_cmd_done (op_cmd_done_wr),

.dev_ack (dev_ack_wr),

.data_in (data_in),

.clk_en (clk_en),

.clk_en_half (clk_en_half),

.sda_t (sda_t_wr),

.sda_i (sda_i),

.scl_t (scl_t_wr),

.scl_i (scl_i),

.rst (rst)

);

i2c_read i2c_read_inst

(

.sys_clk (sys_clk),

.op_cmd (op_cmd),

.op_cmd_en (op_cmd_en),

.op_cmd_done (op_cmd_done_read),

.master_ack (master_ack),

.data_out (data_out),

.clk_en (clk_en),

.clk_en_half (clk_en_half),

.sda_t (sda_t_read),

.sda_i (sda_i),

.scl_t (scl_t_read),

.scl_i (scl_i),

.rst (rst)

);

assign sda_o = 1'b0;

assign scl_o = 1'b0;

endmodule

将设计的模块例化，并组装到 iic_engine的模块中，这样就可以使用SCl_en模块，充分利用以设计的成果，逐步组装成程序代码及接口如下：

`timescale 1ns / 1ps
module iic_engine #
(
parameter DIV_ADDR = 32'hFFFF_0001,
parameter DEV_ADDR = 7'b101_0000,
parameter CLK_F = 100_000_000,
parameter SPEED = 100_000
)
(
input         sys_clk,
inout         SDA,
inout         SCL,
input [31:0]  div_addr,
input [31:0]  div_in,
input         div_en,
input         div_rd,
output [31:0] div_dout,
input  [1:0] op_cmd,
input        op_cmd_en,
output       op_cmd_done,
output       dev_ack,
input        master_ack,
input  [7:0] data_in,
output [7:0] data_out,
output       i2c_error,
input        rst
);
wire  sda_i;
wire  sda_o;
wire  sda_t;
wire  scl_o;
wire  scl_t;
wire  scl_i;
assign SDA = sda_t ? 1'bz: sda_o;
assign sda_i = SDA;
assign SCL = scl_t ? 1'bz: scl_o;
assign scl_i = SCL;
wire        clk_en;
wire        clk_en_half;
//=========================== i2c clock baudtick
scl_en #
(
.DIV_ADDR       ( DIV_ADDR ),
.CLK_F          ( CLK_F ),
.SPEED          ( SPEED )
)
scl_en_inst
(
.sys_clk        ( sys_clk ),
.div_addr       ( div_addr ),
.div_in         ( div_in ),
.div_en         ( div_en ),
.clk_en         ( clk_en ),
.div_rd         ( div_rd ),
.div_dout       ( div_dout ),
.clk_en_half    ( clk_en_half ),
.rst            ( rst )
);
//===============================iic phy
iic_phy iic_phy_inst(
.sys_clk       (sys_clk),
.op_cmd        ( op_cmd ),
.op_cmd_en     ( op_cmd_en ),
.op_cmd_done   ( op_cmd_done ),
.dev_ack       ( dev_ack ),
.master_ack    ( master_ack ),
.data_in       ( data_in ),
.data_out      ( data_out ),
.clk_en        ( clk_en ),
.clk_en_half   ( clk_en_half ),
.sda_t         ( sda_t ),
.sda_o         ( sda_o ),
.sda_i         ( sda_i ),
.scl_t         ( scl_t ),
.scl_o         ( scl_o ),
.scl_i         ( scl_i ),
.rst           ( rst )
);
endmodule

100

101

102

103

104

105

106

`timescale 1ns / 1ps

module iic_engine #

(

parameter DIV_ADDR = 32'hFFFF_0001,

parameter DEV_ADDR = 7'b101_0000,

parameter CLK_F = 100_000_000,

parameter SPEED = 100_000

)

(

input sys_clk,

inout SDA,

inout SCL,

input [31:0] div_addr,

input [31:0] div_in,

input div_en,

input div_rd,

output [31:0] div_dout,

input [1:0] op_cmd,

input op_cmd_en,

output op_cmd_done,

output dev_ack,

input master_ack,

input [7:0] data_in,

output [7:0] data_out,

output i2c_error,

input rst

);

wire sda_i;

wire sda_o;

wire sda_t;

wire scl_o;

wire scl_t;

wire scl_i;

assign SDA = sda_t ? 1'bz: sda_o;

assign sda_i = SDA;

assign SCL = scl_t ? 1'bz: scl_o;

assign scl_i = SCL;

wire clk_en;

wire clk_en_half;

//=========================== i2c clock baudtick

scl_en #

(

.DIV_ADDR ( DIV_ADDR ),

.CLK_F ( CLK_F ),

.SPEED ( SPEED )

)

scl_en_inst

(

.sys_clk ( sys_clk ),

.div_addr ( div_addr ),

.div_in ( div_in ),

.div_en ( div_en ),

.clk_en ( clk_en ),

.div_rd ( div_rd ),

.div_dout ( div_dout ),

.clk_en_half ( clk_en_half ),

.rst ( rst )

);

//===============================iic phy

iic_phy iic_phy_inst(

.sys_clk (sys_clk),

.op_cmd ( op_cmd ),

.op_cmd_en ( op_cmd_en ),

.op_cmd_done ( op_cmd_done ),

.dev_ack ( dev_ack ),

.master_ack ( master_ack ),

.data_in ( data_in ),

.data_out ( data_out ),

.clk_en ( clk_en ),

.clk_en_half ( clk_en_half ),

.sda_t ( sda_t ),

.sda_o ( sda_o ),

.sda_i ( sda_i ),

.scl_t ( scl_t ),

.scl_o ( scl_o ),

.scl_i ( scl_i ),

.rst ( rst )

);

endmodule

仿真程序设计：

`timescale 1ns / 1ps
module tb_dev_read();
parameter PERIOD    = 10 ;
parameter FREQUANCY = 100000000; //100M
parameter SPEED     = 100000; // 100K
parameter SPEED1    = 400000;  //400K
parameter DEV_ADDR  = 7'b101_0001;
reg inclk;
always #( PERIOD / 2 ) inclk = ~inclk;  //133M
wire sys_clk = inclk;
reg rst;  //
reg  [ 31: 0 ] div_in;  //for baudrate register
wire [ 31: 0 ] div_addr = 32'hFFFF_0001;
reg            div_en = 0;
reg  [1:0] op_cmd = 0;
reg        op_cmd_en = 0;
wire       op_cmd_done;
wire       dev_ack;
reg        master_ack = 0;
reg  [7:0] data_in = 0;
wire [7:0] data_out;
reg        i2c_error = 0;
initial
begin
rst = 1'b1;
inclk = 0;
#50 rst = 1'b0;
end
reg [7:0] dev_data = 0;
reg dev_data_valid = 0;
reg [3:0] st = 0;
reg [31:0] cnt = 0;
always@( posedge sys_clk or posedge rst )
if ( rst )
begin
master_ack &lt;= 0;
i2c_error &lt;= 0;
cnt &lt;= 0;
st &lt;= 0;
op_cmd_en &lt;= 1'b0;
op_cmd &lt;= 0;
end
else
begin
case ( st )
0:
begin
master_ack &lt;= 0;
dev_data &lt;= 0;
dev_data_valid &lt;= 0;
i2c_error &lt;= 0;
op_cmd &lt;= 2'b00;
op_cmd_en &lt;= 0;
if(cnt == 5000)
begin
cnt &lt;= 0;
st &lt;= 1;
end
else cnt &lt;= cnt + 1;
end
1:
begin
data_in &lt;= {DEV_ADDR, 1'b0};
op_cmd &lt;= 2'b00;
op_cmd_en &lt;= 1;
st &lt;= 2;
end
2:
begin
op_cmd_en &lt;= 0;
if(op_cmd_done)
begin
if(dev_ack == 1)
i2c_error &lt;= 1;
data_in &lt;= 8'h00;
op_cmd &lt;= 2'b01;
op_cmd_en &lt;= 1;
cnt &lt;= 0;
st &lt;= 3;
end
end
3:
begin
op_cmd_en &lt;= 0;
if(op_cmd_done)
begin
if(dev_ack == 1)
i2c_error &lt;= 1;
data_in &lt;= data_in + 1;
op_cmd &lt;= 2'b01;
op_cmd_en &lt;= 1;
cnt &lt;= cnt + 1;
if(cnt == 7)
st &lt;= 4;
end
end
4:
begin
cnt &lt;= 0;
op_cmd_en &lt;= 0;
if(op_cmd_done)
begin
if(dev_ack == 1)
i2c_error &lt;= 1;
st &lt;= 5;
end
end
5:
begin
if(cnt == 5_000_00)
begin
cnt &lt;= 0;
st &lt;= 6;
end
else cnt &lt;= cnt + 1;
end
6:
begin
cnt &lt;= 0;
op_cmd_en &lt;= 0;
data_in &lt;= {DEV_ADDR, 1'b1};
op_cmd &lt;= 2'b00;
op_cmd_en &lt;= 1;
st &lt;= 7;
end
7:
begin
op_cmd_en &lt;= 0;
if(op_cmd_done)
begin
if(dev_ack == 1)
i2c_error &lt;= 1;
master_ack &lt;= 0;
op_cmd &lt;= 2'b10;
op_cmd_en &lt;= 1;
cnt &lt;= cnt + 1;
st &lt;= 8;
end
end
8:
begin
op_cmd_en &lt;= 0;
dev_data_valid &lt;= 0;
if(op_cmd_done)
begin
dev_data &lt;= data_out;
dev_data_valid &lt;= 1;
op_cmd &lt;= 2'b10;
op_cmd_en &lt;= 1;
cnt &lt;= cnt + 1;
if(cnt == 7)
begin
master_ack &lt;= 1;
st &lt;= 9;
end
end
end
9:
begin
dev_data_valid &lt;= 0;
cnt &lt;= 0;
op_cmd_en &lt;= 0;
if(op_cmd_done)
begin
dev_data &lt;= data_out;
dev_data_valid &lt;= 1;
st &lt;= 10;
end
end
10:
begin
dev_data_valid &lt;= 0;
if(cnt == 5000)
st &lt;= 15;
else cnt &lt;= cnt + 1;
end
15:
begin
st &lt;= 15;
$stop;
end
default:
st &lt;= 0;
endcase
end
wire SDA;
wire SCL;
iic_engine
#(
.CLK_F ( FREQUANCY ) ,   //default with 100Mhz
.SPEED ( SPEED )         //default speed 100k
)
iic_engine_inst
(
.sys_clk    ( sys_clk ),
.div_addr   ( div_addr ),
.div_in     ( div_in ),
.div_en     ( div_en ),
.op_cmd     ( op_cmd ),
.op_cmd_en  ( op_cmd_en ),
.op_cmd_done( op_cmd_done ),
.dev_ack    ( dev_ack ),
.master_ack ( master_ack ),
.data_in    ( data_in ),
.data_out   ( data_out ),
.SDA        ( SDA ),
.SCL        ( SCL ),
.rst        ( rst )
);
PULLUP SDA_inst ( .O(SDA)  );
PULLUP SCL_inst ( .O(SCL)  );
AT24C02D  #
(.SLAVE_ADDRESS(DEV_ADDR))
AT24C02D_inst
(
.SDA    (SDA),
.SCL    (SCL),
.WP     (0)
);
endmodule

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

256

257

258

259

260

261

262

263

264

`timescale 1ns / 1ps

module tb_dev_read();

parameter PERIOD = 10 ;

parameter FREQUANCY = 100000000; //100M

parameter SPEED = 100000; // 100K

parameter SPEED1 = 400000; //400K

parameter DEV_ADDR = 7'b101_0001;

reg inclk;

always #( PERIOD / 2 ) inclk = ~inclk; //133M

wire sys_clk = inclk;

reg rst; //

reg [ 31: 0 ] div_in; //for baudrate register

wire [ 31: 0 ] div_addr = 32'hFFFF_0001;

reg div_en = 0;

reg [1:0] op_cmd = 0;

reg op_cmd_en = 0;

wire op_cmd_done;

wire dev_ack;

reg master_ack = 0;

reg [7:0] data_in = 0;

wire [7:0] data_out;

reg i2c_error = 0;

initial

begin

rst = 1'b1;

inclk = 0;

#50 rst = 1'b0;

end

reg [7:0] dev_data = 0;

reg dev_data_valid = 0;

reg [3:0] st = 0;

reg [31:0] cnt = 0;

always@( posedge sys_clk or posedge rst )

if ( rst )

begin

master_ack <= 0;

i2c_error <= 0;

cnt <= 0;

st <= 0;

op_cmd_en <= 1'b0;

op_cmd <= 0;

end

else

begin

case ( st )

begin

master_ack <= 0;

dev_data <= 0;

dev_data_valid <= 0;

i2c_error <= 0;

op_cmd <= 2'b00;

op_cmd_en <= 0;

if(cnt == 5000)

begin

cnt <= 0;

st <= 1;

end

else cnt <= cnt + 1;

end

begin

data_in <= {DEV_ADDR, 1'b0};

op_cmd <= 2'b00;

op_cmd_en <= 1;

st <= 2;

end

begin

op_cmd_en <= 0;

if(op_cmd_done)

begin

if(dev_ack == 1)

i2c_error <= 1;

data_in <= 8'h00;

op_cmd <= 2'b01;

op_cmd_en <= 1;

cnt <= 0;

st <= 3;

end

begin

op_cmd_en <= 0;

if(op_cmd_done)

begin

if(dev_ack == 1)

i2c_error <= 1;

data_in <= data_in + 1;

op_cmd <= 2'b01;

op_cmd_en <= 1;

cnt <= cnt + 1;

if(cnt == 7)

st <= 4;

end

begin

cnt <= 0;

op_cmd_en <= 0;

if(op_cmd_done)

begin

if(dev_ack == 1)

i2c_error <= 1;

st <= 5;

end

begin

if(cnt == 5_000_00)

begin

cnt <= 0;

st <= 6;

end

else cnt <= cnt + 1;

end

begin

cnt <= 0;

op_cmd_en <= 0;

data_in <= {DEV_ADDR, 1'b1};

op_cmd <= 2'b00;

op_cmd_en <= 1;

st <= 7;

end

begin

op_cmd_en <= 0;

if(op_cmd_done)

begin

if(dev_ack == 1)

i2c_error <= 1;

master_ack <= 0;

op_cmd <= 2'b10;

op_cmd_en <= 1;

cnt <= cnt + 1;

st <= 8;

end

begin

op_cmd_en <= 0;

dev_data_valid <= 0;

if(op_cmd_done)

begin

dev_data <= data_out;

dev_data_valid <= 1;

op_cmd <= 2'b10;

op_cmd_en <= 1;

cnt <= cnt + 1;

if(cnt == 7)

begin

master_ack <= 1;

st <= 9;

end

begin

dev_data_valid <= 0;

cnt <= 0;

op_cmd_en <= 0;

if(op_cmd_done)

begin

dev_data <= data_out;

dev_data_valid <= 1;

st <= 10;

end

10:

begin

dev_data_valid <= 0;

if(cnt == 5000)

st <= 15;

else cnt <= cnt + 1;

end

15:

begin

st <= 15;

$stop;

end

default:

st <= 0;

endcase

end

wire SDA;

wire SCL;

iic_engine

.CLK_F ( FREQUANCY ) , //default with 100Mhz

.SPEED ( SPEED ) //default speed 100k

)

iic_engine_inst

(

.sys_clk ( sys_clk ),

.div_addr ( div_addr ),

.div_in ( div_in ),

.div_en ( div_en ),

.op_cmd ( op_cmd ),

.op_cmd_en ( op_cmd_en ),

.op_cmd_done( op_cmd_done ),

.dev_ack ( dev_ack ),

.master_ack ( master_ack ),

.data_in ( data_in ),

.data_out ( data_out ),

.SDA ( SDA ),

.SCL ( SCL ),

.rst ( rst )

);

PULLUP SDA_inst ( .O(SDA) );

PULLUP SCL_inst ( .O(SCL) );

AT24C02D #

(.SLAVE_ADDRESS(DEV_ADDR))

AT24C02D_inst

(

.SDA (SDA),

.SCL (SCL),

.WP (0)

);

endmodule

仿真结果

仿真波形如图3

图3

从图3可以看出，写入读命令 7’b1010_001 + read。等待设备会ACK，然后控制器读取设备数据，控制器回ACK 给设备。当接收完最后一个数据后，控制器会NACK，通知设备，之后不再读取数据了。当前的仿真程序中没有使用STOP 命令，在下面的课程中对STOP 命令再做介绍。

I2C 主设备PHY层读控制Verilog程序设计

1.I2C读数据部分控制器程序设计

接口要求：

主体程序设计

程序代码如下：

仿真程序设计：

仿真结果

芯片类文章

计算机语言教程

芯片设计

百科关键词

I2C 主设备PHY层读控制Verilog程序设计

1.I2C读数据部分控制器程序设计

接口要求：

主体程序设计

程序代码如下：

仿真程序设计：

仿真结果

相关文章：

芯片类文章

计算机语言教程

芯片设计

百科关键词

文章关键词
