1. 工程代码下载:
2. 利用Mark_debug 抓取的波形如下:

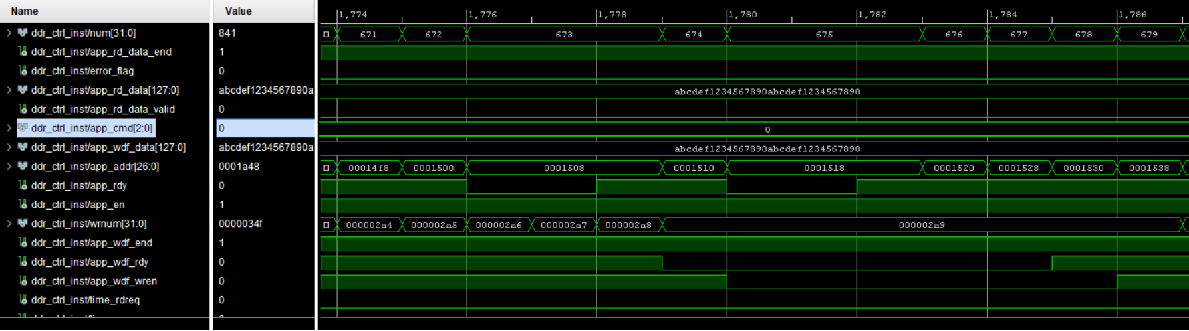

图1 写波形

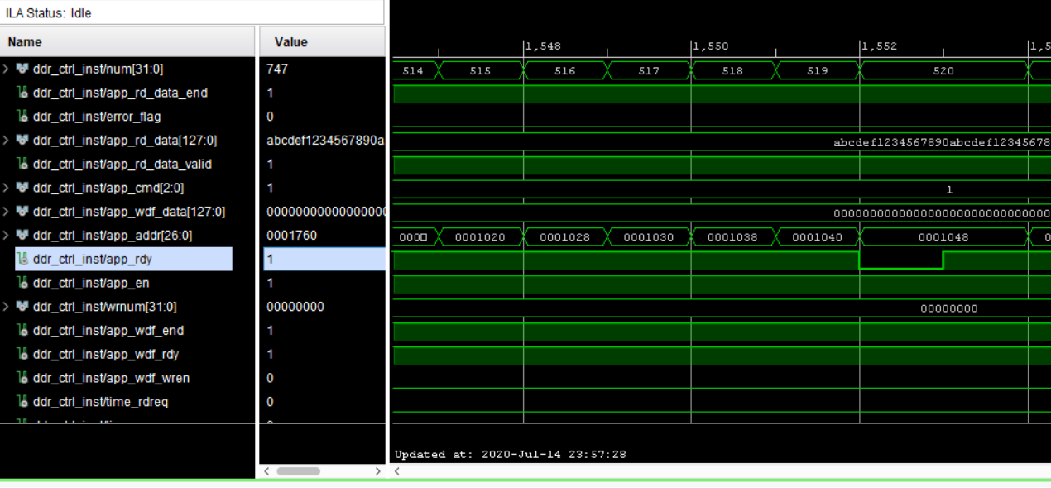

图2 读波形
3. 测试源程序
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 218 219 220 221 222 223 224 225 226 227 228 229 230 231 232 233 234 235 236 237 238 239 240 241 242 243 244 245 246 247 248 249 250 251 252 253 |
`timescale 1ns / 1ps ////////////////////////////////////////////////////////////////////////////////// // Company: // Engineer: // // Create Date: 2020/05/12 17:45:17 // Design Name: // Module Name: ddr_rd_wrrd_wr // Project Name: ddr3_intf // Target Devices: Artix 7 100T // Tool Versions: // Description: // // Dependencies: // clock ratio 4:1 // DDR clock frequency 400Mhz // Revision: // Revision 0.01 - File Created // Additional Comments: // ////////////////////////////////////////////////////////////////////////////////// module ddr_rd_wr( // input [127:0] data_in, (* MARK_DEBUG="true" *) output reg [26:0] app_addr , (* MARK_DEBUG="true" *) output reg [2:0] app_cmd , (* MARK_DEBUG="true" *) output reg app_en , (* MARK_DEBUG="true" *) input app_rdy , (* MARK_DEBUG="true" *) output reg [127:0] app_wdf_data , output reg [15:0] app_wdf_mask , (* MARK_DEBUG="true" *) output app_wdf_end , (* MARK_DEBUG="true" *) output reg app_wdf_wren , (* MARK_DEBUG="true" *) input app_wdf_rdy , (* MARK_DEBUG="true" *) input [127:0] app_rd_data , (* MARK_DEBUG="true" *) input app_rd_data_end , (* MARK_DEBUG="true" *) input app_rd_data_valid , input clk , input rst_n , (* MARK_DEBUG="true" *) output reg error_flag = 0 , output reg end_flag = 0 ); parameter BURST_WR_128BIT = 16777216 ; //0x100_0000 测试写容量 parameter BURST_RD_128BIT = 16777216 ; //0x100_0000 测试读容量 parameter DATA = 128'habcdef1234567890abcdef1234567890 ; //测试数据 // Read and write once every 1 second (* MARK_DEBUG="true" *) reg [27:0] scnt = 0 ; // 分频 ，将100M时钟分频成 周期2秒的方波，高电平和低电平各1秒。 always @ (posedge clk) if (!rst_n) begin scnt <= 0 ; end_flag <= 0 ; end else if (scnt < 28'd199_999_999) begin scnt <= scnt + 1; end_flag <= 0 ; end else begin scnt <= 0 ; end_flag <= ~end_flag ; end (* MARK_DEBUG="true" *) wire time_wrreq = ( scnt == 28'd100_000_000 ) ; (* MARK_DEBUG="true" *) wire time_rdreq = ( scnt == 28'd000_000_000) ; (* MARK_DEBUG="true" *) reg[1:0] cstate; //current state reg[1:0] nstate; //next state (* MARK_DEBUG="true" *) reg [31:0] num = 0 ; (* MARK_DEBUG="true" *) reg [31:0] wrnum = 0 ; always @ (posedge clk ) if (!rst_n) cstate <= 0 ; else cstate <=nstate ; always @(cstate , time_wrreq ,time_rdreq ,num ,app_rdy ,app_wdf_rdy) case (cstate) 0 : begin if ( time_wrreq ) //write request nstate <= 1 ; else if (time_rdreq ) nstate <= 2 ; else nstate <= 0 ; end 1: begin if (( wrnum >= BURST_WR_128BIT) && (num >=BURST_WR_128BIT ) ) nstate <= 3 ; else nstate <= 1 ; end 2: begin if (num >= BURST_RD_128BIT) nstate <= 3 ; else nstate <= 2 ; end 3: begin nstate <= 0 ; end endcase always @ (posedge clk) if (!rst_n) num <= 32'd0 ; else if (cstate ==1) begin if ( app_rdy & app_en ) num <= num+ 1 ; end else if ( cstate == 2) begin if (app_rdy & app_en) num <= num +1 ; end else num <= 0 ; always @ ( posedge clk) if (!rst_n) wrnum <= 32'd0 ; else if (cstate == 1) begin if (app_wdf_rdy & app_wdf_wren) begin wrnum <= wrnum +1 ; end end else wrnum <= 0 ; //////////////////////////////////////////////////// //地址命令 //reg[27:0] app_addr, //DDR3地址总线 //reg[2:0] app_cmd, //DDR3命令总线： 3‘b000--写；3'b001--读； //reg app_en, //地址命令使能，高电平有效 // 读写数据 always@ (posedge clk ) if (~rst_n) begin app_cmd <= 3'd0 ; app_en <= 1'b0 ; app_addr <=27'd0 ; end else begin if ( cstate == 1) begin app_cmd <= 3'b000 ; //write data to ddr3 if ( num < BURST_WR_128BIT ) app_en <= 1 ; else app_en <= 0 ; if (app_rdy & app_en) app_addr[26:3] <= app_addr[26:3]+1 ; // app_addr[10:3] +1'b1 ; 8 data ,16bits end else begin if (cstate == 2) begin if (num <BURST_RD_128BIT) app_en <= 1'b1 ; else app_en <= 1'b0 ; if (app_rdy&app_en) begin app_cmd <= 3'b001 ; app_addr[26:3] <= app_addr[26:3] + 1 ; end end else begin app_cmd <= 3'd0 ; app_en <= 1'b0 ; app_addr <= 27'd0 ; end end end // always @ ( posedge clk) if (!rst_n) begin app_wdf_data <= 128'd0 ; app_wdf_mask<=16'd0; app_wdf_wren <= 0 ; end else begin app_wdf_mask<=16'd0; if(cstate == 1) begin app_wdf_data <= DATA ;//prepare the data if (wrnum <= BURST_WR_128BIT ) app_wdf_wren <= 1'b1 ; else app_wdf_wren <= 1'b0 ; if (app_wdf_rdy & app_wdf_wren) app_wdf_data <= DATA ; end else begin app_wdf_data <= 128'd0 ; app_wdf_wren <= 0 ; end end assign app_wdf_end = 1'b1; always @(posedge clk or negedge rst_n) if(!rst_n) begin error_flag <= 0; end else begin if(app_rd_data_valid&&(app_rd_data!= DATA)) error_flag <= 1 ; else error_flag <=0 ; end endmodule |
