高速串行通信接收端乒乓Buffer数据缓冲Verilog代码

在串行高速通信的发送端加入乒乓Buffer缓冲后，经过仿真可以看出，的确有效的缓解了异步过程中数据突发性，随机性与过程调度的冲突。同时也打破了数据链路层与应用层的紧耦合的逻辑，降低了设计的复杂度。在接收端也面临同样的问题，因此也需要加入乒乓Buffer机制有效缓冲调度机制带来的压力。在本高速通信的案例工程中，经研究在接收端，乒乓Buffer仍然插入到应用层与数据链路层之间是最合适的。

1. 乒乓Buffer例化

由于在数据接收端依然使用TDP RAM，而且两边都是16位接口，因此直接使用发送端生成的TDP RAM进行例化即可，不需要重新生成新的IP。数据链路层的乒乓Buffer例化如下：

tx_pingpong_buffer rx_pingpong_buffer_inst
(
//====================================a port, being connected app layer
.clock_a    ( clk_100M ),
.address_a  ( rx_addr_a ),
.rden_a     ( 1'b1 ),
.wren_a     ( rx_en_a ),
.data_a     ( 16'b0),
.q_a        ( rx_q_a ),
//====================================b port,
.clock_b    ( clk_100M ),
.address_b  ( rx_addr_b ),
.rden_b     ( 1'b1 ),
.wren_b     ( rx_wren_b ),
.data_b     ( 16'b0 ),
.q_b        ( rx_q_b )
);

tx_pingpong_buffer rx_pingpong_buffer_inst

(

//====================================a port, being connected app layer

.clock_a ( clk_100M ),

.address_a ( rx_addr_a ),

.rden_a ( 1'b1 ),

.wren_a ( rx_en_a ),

.data_a ( 16'b0),

.q_a ( rx_q_a ),

//====================================b port,

.clock_b ( clk_100M ),

.address_b ( rx_addr_b ),

.rden_b ( 1'b1 ),

.wren_b ( rx_wren_b ),

.data_b ( 16'b0 ),

.q_b ( rx_q_b )

);

其中双端口RAM的b端口用于和物理层（Phy）做接口，而a端口用于与应用层的接口。

2. 数据链路层的程序设计

参照数据缓冲与乒乓Buffer 的交换机制，以及与物理层的握手机制，数据链路层代码如下：

module recv_data_link #
(
parameter SYNC_START1 = 10'b0011111010,      //K28.5 with dipin=0;
parameter SYNC_START2 = 10'b1100000101,      //K28.5 with dispin=1
parameter SYNC_END1 = 10'b0011111001,        //K28.1 with dipin=0;
parameter SYNC_END2 = 10'b1100000110        //K28.1 with dispin=1
)
(
input rst,
input clk_100M ,
input clk_400M ,
input rx,
input [ 10: 0 ] app_rx_addr_a,
input app_rx_wren_a,
output[ 15: 0 ] app_rx_q_a
);
wire link_ko;
wire link_rx_data_rdy;
wire [ 7: 0 ] link_rx_data;
wire link_rx_data_vld;
reg [ 9: 0 ] rx_addr_b_r;
reg rx_pinpong;
wire [ 10: 0 ] rx_addr_b = { rx_pinpong, rx_addr_b_r };
wire [ 15: 0 ] rx_q_b;
reg [ 15: 0 ] rx_data_b;
reg [ 10: 0 ] rx_num_b;
reg rx_wren_b;
reg [ 2: 0 ] link_rx_st;
always@( posedge clk_100M or posedge rst )
if ( rst )
begin
rx_addr_b_r &lt;= 1023;
rx_pinpong &lt;= 0;
rx_data_b &lt;= 0;
rx_wren_b &lt;= 0;
rx_num_b &lt;= 0;
link_rx_st &lt;= 0;
end
else
case ( link_rx_st )
0:
begin
rx_addr_b_r &lt;= 1023;
rx_pinpong &lt;= 0;
rx_data_b &lt;= 0;
rx_wren_b &lt;= 0;
rx_num_b &lt;= 0;
link_rx_st &lt;= 1;
end
1:
begin
link_rx_st &lt;= 2;
end
2:
begin
if ( ~rx_q_b[ 15 ] &amp;&amp; ~link_rx_data_vld )
link_rx_st &lt;= 3;
end
3:
begin
if ( link_rx_data_vld )
link_rx_st &lt;= 4;
end
4:
begin
rx_wren_b &lt;= 0;
if ( !link_rx_data_vld )
begin
link_rx_st &lt;= 6;
end
else if ( link_rx_data_rdy )
begin
rx_num_b &lt;= rx_num_b + 1'b1;
// rx_addr_b_r     &lt;=rx_addr_b_r+1'b1;
rx_data_b[ 7: 0 ] &lt;= link_rx_data;
link_rx_st &lt;= 5;
end
end
5:
begin
rx_wren_b &lt;= 0;
if ( !link_rx_data_vld )
begin
rx_addr_b_r &lt;= rx_addr_b_r + 1'b1;
rx_wren_b &lt;= 1;
link_rx_st &lt;= 6;
end
else if ( link_rx_data_rdy )
begin
rx_num_b &lt;= rx_num_b + 1'b1;
rx_data_b[ 15: 8 ] &lt;= link_rx_data;
rx_addr_b_r &lt;= rx_addr_b_r + 1'b1;
rx_wren_b &lt;= 1'b1;
link_rx_st &lt;= 4;
end
end
6:
begin
rx_wren_b &lt;= 1;
rx_addr_b_r &lt;= 1023;
rx_data_b &lt;= { 1'b1, 4'b0000, rx_num_b };
link_rx_st &lt;= 7;
end
7:
begin
rx_wren_b &lt;= 0;
rx_pinpong &lt;= rx_pinpong + 1'b1;
rx_num_b &lt;= 0;
link_rx_st &lt;= 1;
end
default:
link_rx_st &lt;= 0;
endcase
tx_pingpong_buffer rx_pingpong_buffer_inst
(
//====================================a port, being connected app layer
.clock_a        ( clk_100M ),
.address_a      ( app_rx_addr_a ),
.rden_a         ( 1'b1 ),
.wren_a         ( app_rx_wren_a ),
.data_a         ( 16'b0 ),
.q_a            ( app_rx_q_a ),
//====================================b port,
.clock_b        ( clk_100M ),
.address_b      ( rx_addr_b ),
.rden_b         ( 1'b1 ),
.wren_b         ( rx_wren_b ),
.data_b         ( rx_data_b ),
.q_b            ( rx_q_b )
);
recv_data_pcs #
(
.SYNC_START1( 10'b0011111010 ),        //K28.5 with dipin=0;
.SYNC_START2( 10'b1100000101 ),        //K28.5 with dispin=1
.SYNC_END1  ( 10'b0011111001 ),        //K28.1 with dipin=0;
.SYNC_END2  ( 10'b1100000110 )         //K28.1 with dispin=1
)
recv_data_pcs_inst
(
.rst            ( rst ),
.clk_100M       ( clk_100M ),
.clk_400M       ( clk_400M ),
.rx             ( rx ),
.pcs_rx_data_rdy( link_rx_data_rdy ),
.pcs_ko         ( link_ko ),
.pcs_rx_data    ( link_rx_data ),
.pcs_rx_data_vld( link_rx_data_vld )
);
endmodule

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

module recv_data_link #

(

parameter SYNC_START1 = 10'b0011111010, //K28.5 with dipin=0;

parameter SYNC_START2 = 10'b1100000101, //K28.5 with dispin=1

parameter SYNC_END1 = 10'b0011111001, //K28.1 with dipin=0;

parameter SYNC_END2 = 10'b1100000110 //K28.1 with dispin=1

)

(

input rst,

input clk_100M ,

input clk_400M ,

input rx,

input [ 10: 0 ] app_rx_addr_a,

input app_rx_wren_a,

output[ 15: 0 ] app_rx_q_a

);

wire link_ko;

wire link_rx_data_rdy;

wire [ 7: 0 ] link_rx_data;

wire link_rx_data_vld;

reg [ 9: 0 ] rx_addr_b_r;

reg rx_pinpong;

wire [ 10: 0 ] rx_addr_b = { rx_pinpong, rx_addr_b_r };

wire [ 15: 0 ] rx_q_b;

reg [ 15: 0 ] rx_data_b;

reg [ 10: 0 ] rx_num_b;

reg rx_wren_b;

reg [ 2: 0 ] link_rx_st;

always@( posedge clk_100M or posedge rst )

if ( rst )

begin

rx_addr_b_r <= 1023;

rx_pinpong <= 0;

rx_data_b <= 0;

rx_wren_b <= 0;

rx_num_b <= 0;

link_rx_st <= 0;

end

else

case ( link_rx_st )

begin

rx_addr_b_r <= 1023;

rx_pinpong <= 0;

rx_data_b <= 0;

rx_wren_b <= 0;

rx_num_b <= 0;

link_rx_st <= 1;

end

begin

link_rx_st <= 2;

end

begin

if ( ~rx_q_b[ 15 ] && ~link_rx_data_vld )

link_rx_st <= 3;

end

begin

if ( link_rx_data_vld )

link_rx_st <= 4;

end

begin

rx_wren_b <= 0;

if ( !link_rx_data_vld )

begin

link_rx_st <= 6;

end

else if ( link_rx_data_rdy )

begin

rx_num_b <= rx_num_b + 1'b1;

// rx_addr_b_r <=rx_addr_b_r+1'b1;

rx_data_b[ 7: 0 ] <= link_rx_data;

link_rx_st <= 5;

end

begin

rx_wren_b <= 0;

if ( !link_rx_data_vld )

begin

rx_addr_b_r <= rx_addr_b_r + 1'b1;

rx_wren_b <= 1;

link_rx_st <= 6;

end

else if ( link_rx_data_rdy )

begin

rx_num_b <= rx_num_b + 1'b1;

rx_data_b[ 15: 8 ] <= link_rx_data;

rx_addr_b_r <= rx_addr_b_r + 1'b1;

rx_wren_b <= 1'b1;

link_rx_st <= 4;

end

begin

rx_wren_b <= 1;

rx_addr_b_r <= 1023;

rx_data_b <= { 1'b1, 4'b0000, rx_num_b };

link_rx_st <= 7;

end

begin

rx_wren_b <= 0;

rx_pinpong <= rx_pinpong + 1'b1;

rx_num_b <= 0;

link_rx_st <= 1;

end

default:

link_rx_st <= 0;

endcase

tx_pingpong_buffer rx_pingpong_buffer_inst

(

//====================================a port, being connected app layer

.clock_a ( clk_100M ),

.address_a ( app_rx_addr_a ),

.rden_a ( 1'b1 ),

.wren_a ( app_rx_wren_a ),

.data_a ( 16'b0 ),

.q_a ( app_rx_q_a ),

//====================================b port,

.clock_b ( clk_100M ),

.address_b ( rx_addr_b ),

.rden_b ( 1'b1 ),

.wren_b ( rx_wren_b ),

.data_b ( rx_data_b ),

.q_b ( rx_q_b )

);

recv_data_pcs #

(

.SYNC_START1( 10'b0011111010 ), //K28.5 with dipin=0;

.SYNC_START2( 10'b1100000101 ), //K28.5 with dispin=1

.SYNC_END1 ( 10'b0011111001 ), //K28.1 with dipin=0;

.SYNC_END2 ( 10'b1100000110 ) //K28.1 with dispin=1

)

recv_data_pcs_inst

(

.rst ( rst ),

.clk_100M ( clk_100M ),

.clk_400M ( clk_400M ),

.rx ( rx ),

.pcs_rx_data_rdy( link_rx_data_rdy ),

.pcs_ko ( link_ko ),

.pcs_rx_data ( link_rx_data ),

.pcs_rx_data_vld( link_rx_data_vld )

);

endmodule

2. 顶层修改后的文件

module hs_txrx
#(
parameter IDLE = 10'b1010_1010_10
)
(
input inclk,
input pll_rst,
input [ 10: 0 ] tx_addr,
input [ 15: 0 ] tx_data,
input tx_en,
output[ 15: 0 ] tx_q,
output tx,
input rx,
input [10:0]app_rx_addr_a,
input       app_rx_wren_a,
output[15:0]app_rx_q_a,
output clk_100M,
output pll_locked
);
wire clk_400M;
wire rst = !pll_locked;
trans_data_link
#(
.IDLE( IDLE )
)
trans_data_link_inst
(
.rst        ( rst ),
.clk_100M   ( clk_100M ),
.tx_addr_a  ( tx_addr ),
.tx_data_a  ( tx_data ),
.tx_en_a    ( tx_en ),
.tx_q_a     ( tx_q ),
.tx_out     ( tx )
);
recv_data_link #
(
.SYNC_START1( 10'b0011111010 ),       //K28.5 with dipin=0;
.SYNC_START2( 10'b1100000101 ),       //K28.5 with dispin=1
.SYNC_END1  ( 10'b0011111001 ),       //K28.1 with dipin=0;
.SYNC_END2  ( 10'b1100000110 )        //K28.1 with dispin=1
)
recv_data_link_inst
(
.rst                ( rst ),
.clk_100M           ( clk_100M ),
.clk_400M           ( clk_400M ),
.rx                 ( rx ),
.app_rx_addr_a      (app_rx_addr_a),
.app_rx_wren_a      (app_rx_wren_a),
.app_rx_q_a         (app_rx_q_a)
);
pll1 pll1_inst
(
.areset ( pll_rst ),    //1'b0;
.inclk0 ( inclk ),
.c0     ( clk_100M ),
.c1     ( clk_400M ),
.locked ( pll_locked )
);
endmodule

module hs_txrx

parameter IDLE = 10'b1010_1010_10

)

(

input inclk,

input pll_rst,

input [ 10: 0 ] tx_addr,

input [ 15: 0 ] tx_data,

input tx_en,

output[ 15: 0 ] tx_q,

output tx,

input rx,

input [10:0]app_rx_addr_a,

input app_rx_wren_a,

output[15:0]app_rx_q_a,

output clk_100M,

output pll_locked

);

wire clk_400M;

wire rst = !pll_locked;

trans_data_link

.IDLE( IDLE )

)

trans_data_link_inst

(

.rst ( rst ),

.clk_100M ( clk_100M ),

.tx_addr_a ( tx_addr ),

.tx_data_a ( tx_data ),

.tx_en_a ( tx_en ),

.tx_q_a ( tx_q ),

.tx_out ( tx )

);

recv_data_link #

(

.SYNC_START1( 10'b0011111010 ), //K28.5 with dipin=0;

.SYNC_START2( 10'b1100000101 ), //K28.5 with dispin=1

.SYNC_END1 ( 10'b0011111001 ), //K28.1 with dipin=0;

.SYNC_END2 ( 10'b1100000110 ) //K28.1 with dispin=1

)

recv_data_link_inst

(

.rst ( rst ),

.clk_100M ( clk_100M ),

.clk_400M ( clk_400M ),

.rx ( rx ),

.app_rx_addr_a (app_rx_addr_a),

.app_rx_wren_a (app_rx_wren_a),

.app_rx_q_a (app_rx_q_a)

);

pll1 pll1_inst

(

.areset ( pll_rst ), //1'b0;

.inclk0 ( inclk ),

.c0 ( clk_100M ),

.c1 ( clk_400M ),

.locked ( pll_locked )

);

endmodule

4.应用层程序

应用层的代码（这里用仿真程序模拟应用层程序）

`timescale 1 ns / 1 ps
module tb_pinpong
( );
parameter [ 10: 0 ] LEN = 17;
parameter PERIOD = 20 ;    //周期20
parameter IDLE = 10'b1010_1010_10;
reg inclk ;       // 模拟板级提供的输入时钟
initial
begin
inclk = 1'b0;
#( PERIOD / 2 );
forever
#( PERIOD / 2 ) inclk = ~inclk;
end
reg pll_rst;     //实体模块PLL的rst信号
wire tx_rx;      // 收发在testbench的回环信号
wire clk_100M;
wire pll_locked;    //实体PLL锁定信号
wire rst = !pll_locked;     //Testbench内生成复位信号
reg [ 9: 0 ] tx_addr_r;
reg tx_pinpong;
wire [ 10: 0 ] tx_addr = { tx_pinpong, tx_addr_r };
reg [ 15: 0 ] tx_data;      //待发送数据
reg [ 7: 0 ] tx_data_r;
reg tx_en;
wire [ 15: 0 ] tx_q;
reg [ 9: 0 ] app_rx_addr_r;
reg app_rx_pingpong;
wire [ 10: 0 ] app_rx_addr_a = { app_rx_pingpong, app_rx_addr_r };
reg app_rx_wren_a;
wire [ 15: 0 ] app_rx_q_a;
reg [ 10: 0 ] rev_len;
reg rx_data_vld;
reg [ 15: 0 ] app_rx_data;
reg [ 7: 0 ] frame_len;
reg [ 2: 0 ] tx_st;
initial
begin
pll_rst = 1'b1;
#50 pll_rst = 1'b0;
end
//=====================================schedule for multi_task or multi_procedure ;
reg tx_rdy;   //master schedule and authorise tx precudure become active stream.
reg tx_rdy_ack;
reg rx_rdy;
reg rx_rdy_ack;
reg [ 2: 0 ] sch_st;  //mimic master schedule,
always@( posedge clk_100M or posedge rst )
if ( rst )
begin
tx_rdy &lt;= 0;
rx_rdy &lt;= 0;
sch_st &lt;= 0;
end
else
case ( sch_st )
0:
begin
tx_rdy &lt;= 1'b1;
if ( tx_rdy_ack )
begin
tx_rdy &lt;= 1'b0;
sch_st &lt;= 1;
end
end
1:
begin
rx_rdy &lt;= 1'b1;
if ( rx_rdy_ack )
begin
rx_rdy &lt;= 1'b0;
sch_st &lt;= 2;
end
end
2:
begin
sch_st &lt;= 3;
end
3:
begin
sch_st &lt;= 4;
end
4:
begin
sch_st &lt;= 5;
end
5:
begin
sch_st &lt;= 6;
end
6:
begin
sch_st &lt;= 7;
end
7:
begin
sch_st &lt;= 0;
end
default:
sch_st &lt;= 0;
endcase
wire [ 7: 0 ] tx_data_p = tx_data_r + 1;
always@( posedge clk_100M or posedge rst )
if ( rst )
begin
frame_len &lt;= 0;
tx_addr_r &lt;= 1023;
tx_pinpong &lt;= 0;
tx_data &lt;= 0;
tx_data_r &lt;= 0;
tx_en &lt;= 1'b0;
tx_rdy_ack &lt;= 0;
tx_st &lt;= 0;
end
else
begin
case ( tx_st )
0:
begin
tx_addr_r &lt;= 1023;
tx_pinpong &lt;= 0;
tx_data &lt;= 0;
tx_rdy_ack &lt;= 0;
frame_len &lt;= 0;
tx_st &lt;= 1;
end
1:
begin
tx_rdy_ack &lt;= 0;
if ( tx_rdy )
tx_st &lt;= 2;
end
2:
begin
if ( tx_q[ 15 ] )
tx_st &lt;= 6;
else
tx_st &lt;= 3;
end
3:
begin
if ( frame_len &gt;= LEN )
begin
tx_en &lt;= 1'b0;
tx_st &lt;= 4;
end
else
begin
tx_data &lt;= { tx_data_p, tx_data_r };
frame_len &lt;= frame_len + 2;
tx_addr_r &lt;= tx_addr_r + 1;
tx_data_r &lt;= tx_data_r + 2;
tx_en &lt;= 1'b1;
end
end
4:
begin
tx_data &lt;= { 1'b1, 4'b0, LEN };
frame_len &lt;= 0;
tx_addr_r &lt;= 1023;
tx_en &lt;= 1'b1;
tx_st &lt;= 5;
end
5:
begin
tx_en &lt;= 1'b0;
tx_pinpong &lt;= tx_pinpong + 1'b1;
tx_st &lt;= 6;
end
6:
begin
tx_rdy_ack &lt;= 1'b1;
tx_st &lt;= 7;
end
7:
begin
tx_rdy_ack &lt;= 1'b0;
tx_st &lt;= 1;
end
default:
tx_st &lt;= 0;
endcase
end
reg [ 2: 0 ] rx_st;
reg [ 10: 0 ] rx_length;
always@( posedge clk_100M or posedge rst )
if ( rst )
begin
rx_rdy_ack &lt;= 1'b0;
app_rx_addr_r &lt;= 1023;
app_rx_pingpong &lt;= 0;
app_rx_wren_a &lt;= 0;
rev_len &lt;= 0;
rx_length &lt;= 0;
rx_data_vld &lt;= 0;
app_rx_data &lt;= 0;
rx_st &lt;= 0;
end
else
case ( rx_st )
0:
begin
rx_rdy_ack &lt;= 1'b0;
app_rx_addr_r &lt;= 1023;
app_rx_wren_a &lt;= 0;
rev_len &lt;= 0;
rx_length &lt;= 0;
rx_data_vld &lt;= 0;
app_rx_data &lt;= 0;
if ( rx_rdy )
rx_st &lt;= 1;
end
1:
begin
rx_st &lt;= 2;
end
2:
begin
if ( app_rx_q_a[ 15 ] )
begin
app_rx_addr_r &lt;= 0;
rx_st &lt;= 3;
end
else
begin
rx_st &lt;= 7;
rx_rdy_ack &lt;= 1'b1;
end
end
3:
begin
rev_len &lt;= app_rx_q_a[ 10: 0 ];
rx_length &lt;= app_rx_q_a[ 10: 0 ];
app_rx_addr_r &lt;= app_rx_addr_r + 1;
rx_st &lt;= 4;
end
4:
begin
rx_data_vld &lt;= 1'b0;
app_rx_data &lt;= app_rx_q_a;
if ( rev_len &lt;= 1 )
begin
rx_st &lt;= 5;
rx_data_vld &lt;= rev_len[ 0 ];
end
else
begin
rev_len &lt;= rev_len - 2;
app_rx_addr_r &lt;= app_rx_addr_r + 1;
rx_data_vld &lt;= 1'b1;
end
end
5:
begin
app_rx_addr_r &lt;= 1023;
app_rx_wren_a &lt;= 1'b1;
rx_data_vld &lt;= 1'b0;               //modified after simulation
rx_st &lt;= 6;
end
6:
begin
app_rx_pingpong &lt;= app_rx_pingpong + 1;
app_rx_wren_a &lt;= 1'b0;
rx_st &lt;= 7;
rx_rdy_ack &lt;= 1'b1;
end
7:
begin
rx_rdy_ack &lt;= 1'b0;
app_rx_wren_a &lt;= 1'b0;
rx_st &lt;= 0;
end
default:
rx_st &lt;= 0;
endcase
hs_txrx     #( .IDLE( IDLE ) )
hs_txrx_inst
(
.inclk          ( inclk ),
.pll_rst        ( pll_rst ),
.tx_addr        ( tx_addr ),
.tx_data        ( tx_data ),
.tx_en          ( tx_en ),
.tx_q           ( tx_q ),
.tx             ( tx_rx ),
.rx             ( tx_rx ),
.app_rx_addr_a  ( app_rx_addr_a ),
.app_rx_wren_a  ( app_rx_wren_a ),
.app_rx_q_a     ( app_rx_q_a ),
.clk_100M       ( clk_100M ),
.pll_locked     ( pll_locked )
);
endmodule

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

256

257

258

259

260

261

262

263

264

265

266

267

268

269

270

271

272

273

274

275

276

277

278

279

280

281

282

283

284

285

286

287

288

289

290

291

292

293

294

295

296

297

298

299

300

301

302

303

304

305

306

307

308

309

310

311

312

313

314

315

316

317

318

319

320

321

322

323

324

325

326

327

328

329

330

331

332

333

334

`timescale 1 ns / 1 ps

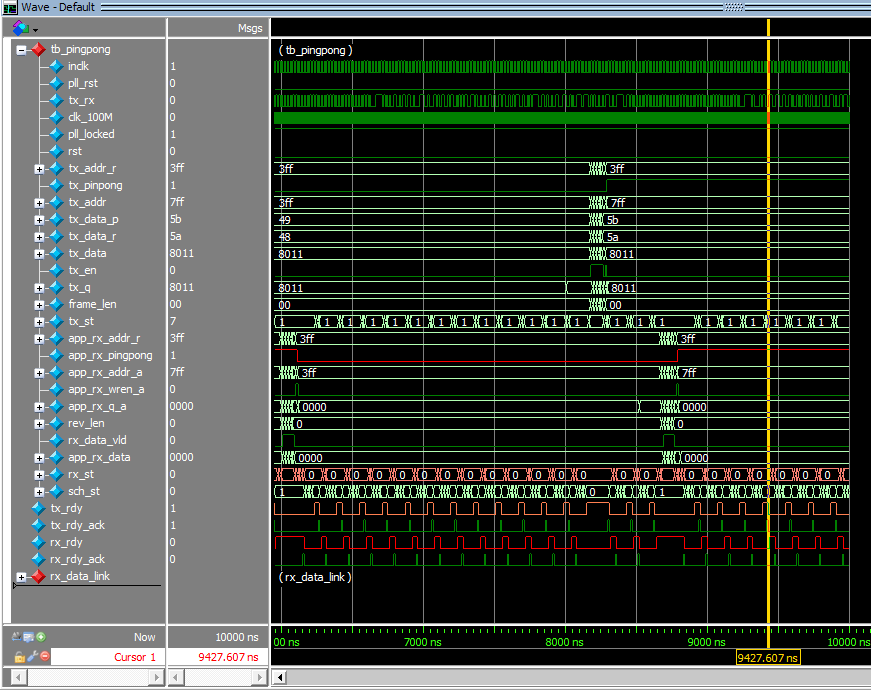

module tb_pinpong

( );

parameter [ 10: 0 ] LEN = 17;

parameter PERIOD = 20 ; //周期20

parameter IDLE = 10'b1010_1010_10;

reg inclk ; // 模拟板级提供的输入时钟

initial

begin

inclk = 1'b0;

#( PERIOD / 2 );

forever

#( PERIOD / 2 ) inclk = ~inclk;

end

reg pll_rst; //实体模块PLL的rst信号

wire tx_rx; // 收发在testbench的回环信号

wire clk_100M;

wire pll_locked; //实体PLL锁定信号

wire rst = !pll_locked; //Testbench内生成复位信号

reg [ 9: 0 ] tx_addr_r;

reg tx_pinpong;

wire [ 10: 0 ] tx_addr = { tx_pinpong, tx_addr_r };

reg [ 15: 0 ] tx_data; //待发送数据

reg [ 7: 0 ] tx_data_r;

reg tx_en;

wire [ 15: 0 ] tx_q;

reg [ 9: 0 ] app_rx_addr_r;

reg app_rx_pingpong;

wire [ 10: 0 ] app_rx_addr_a = { app_rx_pingpong, app_rx_addr_r };

reg app_rx_wren_a;

wire [ 15: 0 ] app_rx_q_a;

reg [ 10: 0 ] rev_len;

reg rx_data_vld;

reg [ 15: 0 ] app_rx_data;

reg [ 7: 0 ] frame_len;

reg [ 2: 0 ] tx_st;

initial

begin

pll_rst = 1'b1;

#50 pll_rst = 1'b0;

end

//=====================================schedule for multi_task or multi_procedure ;

reg tx_rdy; //master schedule and authorise tx precudure become active stream.

reg tx_rdy_ack;

reg rx_rdy;

reg rx_rdy_ack;

reg [ 2: 0 ] sch_st; //mimic master schedule,

always@( posedge clk_100M or posedge rst )

if ( rst )

begin

tx_rdy <= 0;

rx_rdy <= 0;

sch_st <= 0;

end

else

case ( sch_st )

begin

tx_rdy <= 1'b1;

if ( tx_rdy_ack )

begin

tx_rdy <= 1'b0;

sch_st <= 1;

end

begin

rx_rdy <= 1'b1;

if ( rx_rdy_ack )

begin

rx_rdy <= 1'b0;

sch_st <= 2;

end

begin

sch_st <= 3;

end

begin

sch_st <= 4;

end

begin

sch_st <= 5;

end

begin

sch_st <= 6;

end

begin

sch_st <= 7;

end

begin

sch_st <= 0;

end

default:

sch_st <= 0;

endcase

wire [ 7: 0 ] tx_data_p = tx_data_r + 1;

always@( posedge clk_100M or posedge rst )

if ( rst )

begin

frame_len <= 0;

tx_addr_r <= 1023;

tx_pinpong <= 0;

tx_data <= 0;

tx_data_r <= 0;

tx_en <= 1'b0;

tx_rdy_ack <= 0;

tx_st <= 0;

end

else

begin

case ( tx_st )

begin

tx_addr_r <= 1023;

tx_pinpong <= 0;

tx_data <= 0;

tx_rdy_ack <= 0;

frame_len <= 0;

tx_st <= 1;

end

begin

tx_rdy_ack <= 0;

if ( tx_rdy )

tx_st <= 2;

end

begin

if ( tx_q[ 15 ] )

tx_st <= 6;

else

tx_st <= 3;

end

begin

if ( frame_len >= LEN )

begin

tx_en <= 1'b0;

tx_st <= 4;

end

else

begin

tx_data <= { tx_data_p, tx_data_r };

frame_len <= frame_len + 2;

tx_addr_r <= tx_addr_r + 1;

tx_data_r <= tx_data_r + 2;

tx_en <= 1'b1;

end

begin

tx_data <= { 1'b1, 4'b0, LEN };

frame_len <= 0;

tx_addr_r <= 1023;

tx_en <= 1'b1;

tx_st <= 5;

end

begin

tx_en <= 1'b0;

tx_pinpong <= tx_pinpong + 1'b1;

tx_st <= 6;

end

begin

tx_rdy_ack <= 1'b1;

tx_st <= 7;

end

begin

tx_rdy_ack <= 1'b0;

tx_st <= 1;

end

default:

tx_st <= 0;

endcase

end

reg [ 2: 0 ] rx_st;

reg [ 10: 0 ] rx_length;

always@( posedge clk_100M or posedge rst )

if ( rst )

begin

rx_rdy_ack <= 1'b0;

app_rx_addr_r <= 1023;

app_rx_pingpong <= 0;

app_rx_wren_a <= 0;

rev_len <= 0;

rx_length <= 0;

rx_data_vld <= 0;

app_rx_data <= 0;

rx_st <= 0;

end

else

case ( rx_st )

begin

rx_rdy_ack <= 1'b0;

app_rx_addr_r <= 1023;

app_rx_wren_a <= 0;

rev_len <= 0;

rx_length <= 0;

rx_data_vld <= 0;

app_rx_data <= 0;

if ( rx_rdy )

rx_st <= 1;

end

begin

rx_st <= 2;

end

begin

if ( app_rx_q_a[ 15 ] )

begin

app_rx_addr_r <= 0;

rx_st <= 3;

end

else

begin

rx_st <= 7;

rx_rdy_ack <= 1'b1;

end

begin

rev_len <= app_rx_q_a[ 10: 0 ];

rx_length <= app_rx_q_a[ 10: 0 ];

app_rx_addr_r <= app_rx_addr_r + 1;

rx_st <= 4;

end

begin

rx_data_vld <= 1'b0;

app_rx_data <= app_rx_q_a;

if ( rev_len <= 1 )

begin

rx_st <= 5;

rx_data_vld <= rev_len[ 0 ];

end

else

begin

rev_len <= rev_len - 2;

app_rx_addr_r <= app_rx_addr_r + 1;

rx_data_vld <= 1'b1;

end

begin

app_rx_addr_r <= 1023;

app_rx_wren_a <= 1'b1;

rx_data_vld <= 1'b0; //modified after simulation

rx_st <= 6;

end

begin

app_rx_pingpong <= app_rx_pingpong + 1;

app_rx_wren_a <= 1'b0;

rx_st <= 7;

rx_rdy_ack <= 1'b1;

end

begin

rx_rdy_ack <= 1'b0;

app_rx_wren_a <= 1'b0;

rx_st <= 0;

end

default:

rx_st <= 0;

endcase

hs_txrx #( .IDLE( IDLE ) )

hs_txrx_inst

(

.inclk ( inclk ),

.pll_rst ( pll_rst ),

.tx_addr ( tx_addr ),

.tx_data ( tx_data ),

.tx_en ( tx_en ),

.tx_q ( tx_q ),

.tx ( tx_rx ),

.rx ( tx_rx ),

.app_rx_addr_a ( app_rx_addr_a ),

.app_rx_wren_a ( app_rx_wren_a ),

.app_rx_q_a ( app_rx_q_a ),

.clk_100M ( clk_100M ),

.pll_locked ( pll_locked )

);

endmodule

新的应用程序只展示了应用层读数据的过程，并在该程序中加了新的调度。

5.仿真波形：

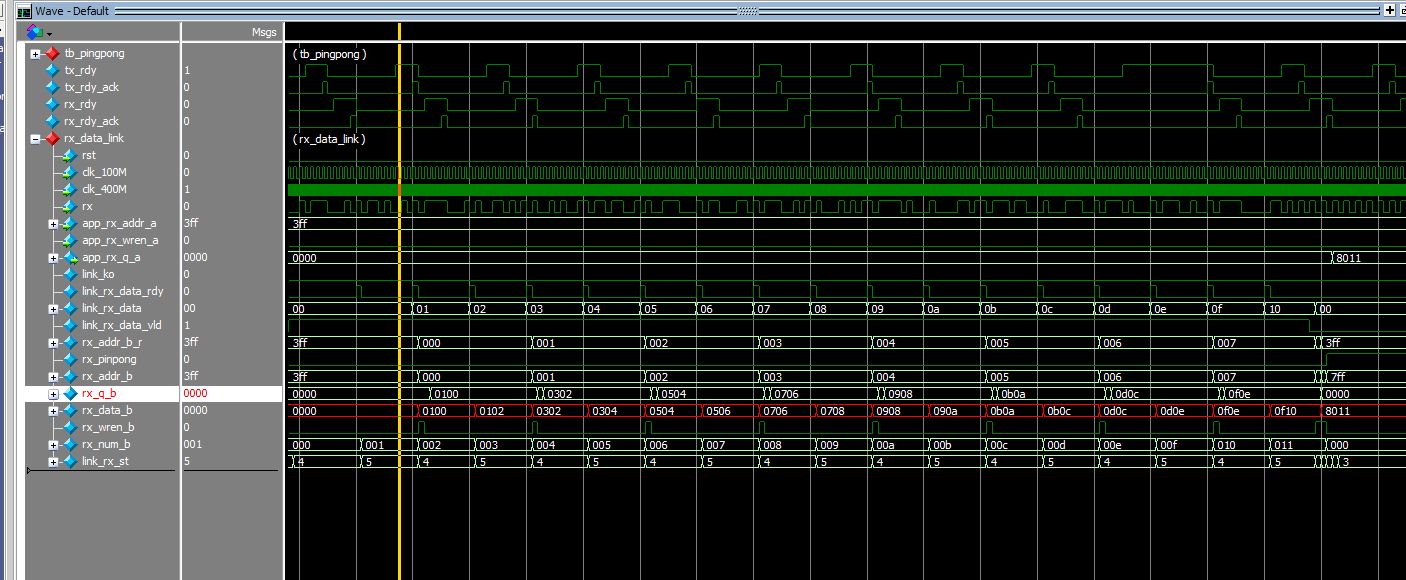

图1-1 数据链路层仿真波形1

观察双口RAM b端口的控制字的值，数据链路层与物理层的握手。

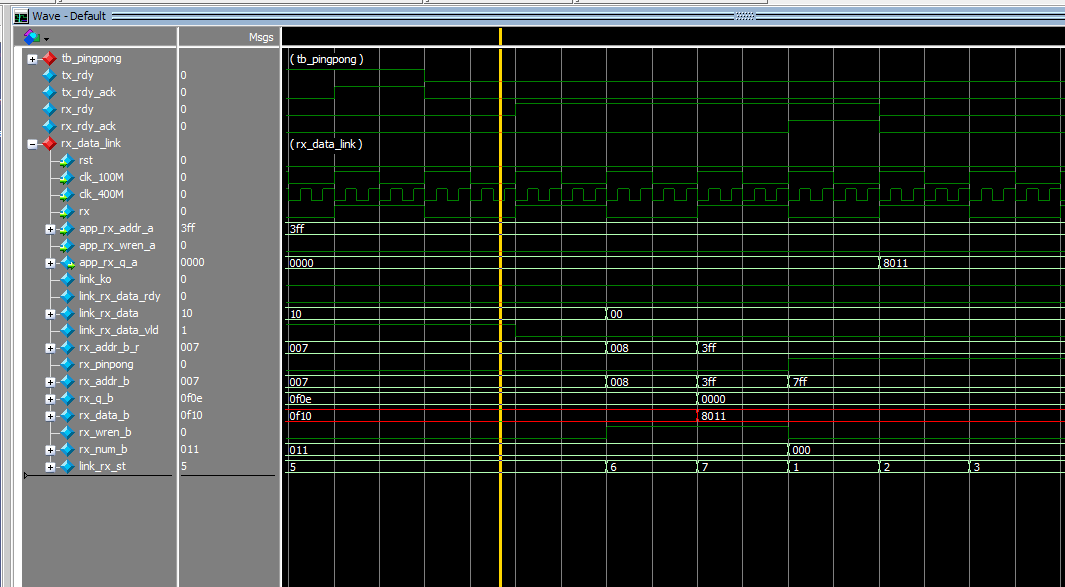

图1-2 数据链路层仿真波形2

图1-2中注意观察写关键字的情况以及乒乓Buffer的交换。

图2-1 观察调度的时间分配

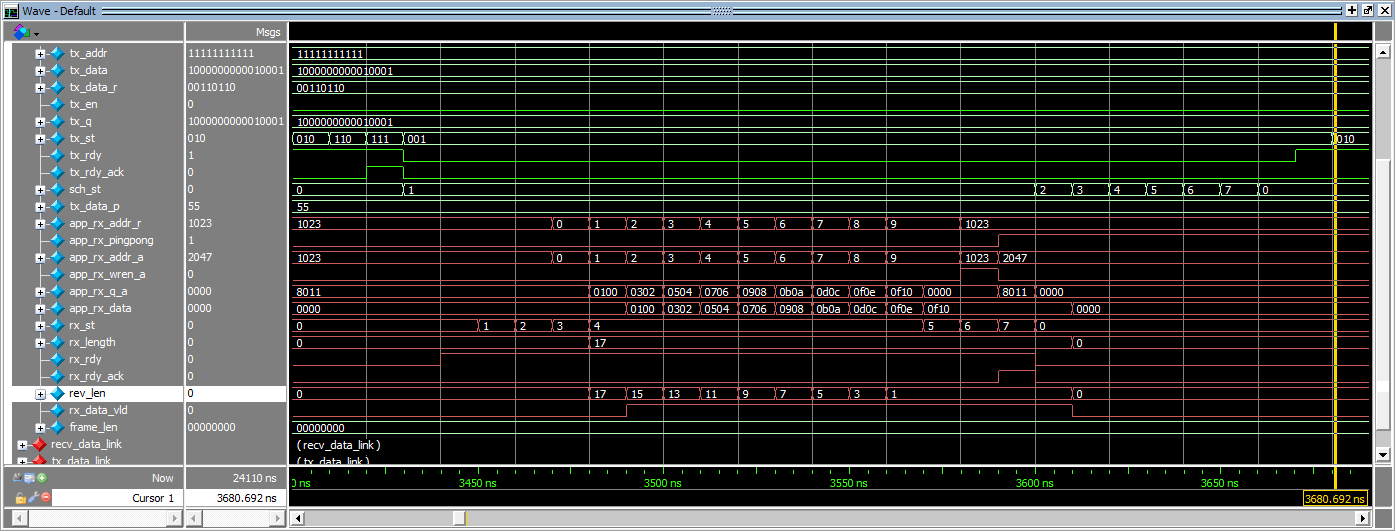

图2-2 观察接收端数据的读取

程序的细节解释请观看对应的视频。

高速串行通信接收端乒乓Buffer数据缓冲Verilog代码

1. 乒乓Buffer例化

2. 数据链路层的程序设计

2. 顶层修改后的文件

4.应用层程序

5.仿真波形：

芯片类文章

计算机语言教程

芯片设计

百科关键词

高速串行通信接收端乒乓Buffer数据缓冲Verilog代码

1. 乒乓Buffer例化

2. 数据链路层的程序设计

2. 顶层修改后的文件

4.应用层程序

5.仿真波形：

相关文章：

芯片类文章

计算机语言教程

芯片设计

百科关键词

文章关键词
